1990 Gulfstream GIV S/N 1136 - N746MN

"Make Offer"
12453
Hours
6202
Landings
11
Passengers
4200
nm Range
  • Available for immediate delivery
  • Painted in 2017
  • WIFI (GoGo ATG-4000 with Talk & Text)
  • ADS-B Out
  • Laseref IV Upgrade
  • XM Weather
  • Numerous ASC's have been incorporated

(The complete list of options can be found in the "Optional Equipment" section of this specification)

View brochure
1990 Gulfstream GIV S/N 1136 - exterior of white and blue aircraft for sale, parked outside, Mikolay Jet group logo
No items found.
Airframe & Engines
Interior & Exterior
Additional Info

Engines: Rolls-Royce TAY611-8

  • Times since new: #1: 12,071.4, #2: 12,071.4
  • Cycles: #1: 6,018, #2: 6,018
  • Serial No: #1: 16379, #2: 16380

Times as of October 2, 2025

APU - Honeywell GTCP36-150(G)

  • Times: 5,130
  • Serial No.: P-872C

Time as of October 2, 2025

Weights

  • Max Ramp Weight: 73,600 Lbs
  • Max Take-Off Weight: 73,200 Lbs
  • Max Landing Weight: 58,500 Lbs
  • Max Zero Fuel Weight: 46,500 Lbs
  • Aircraft Empty Weight: 43,110.9 Lbs

Capabilities

  • ADS-B Out
  • RVSM
  • 8.33 Spacing
  • FM Immunity

Interior

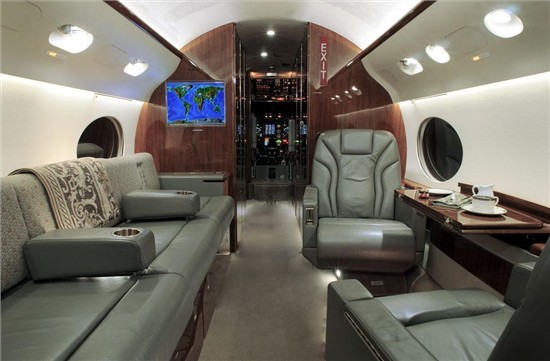

The 11-passenger executive interior with American Walnut woodwork is configured as follows:

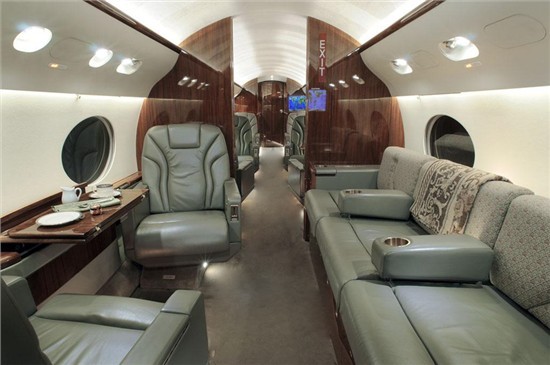

  • Forward Cabin: Two individual pedestal-mounted passenger seats with inboard and outboard tracking, recline and swivel opposite a 3-place side-facing couch with privacy doors.‍

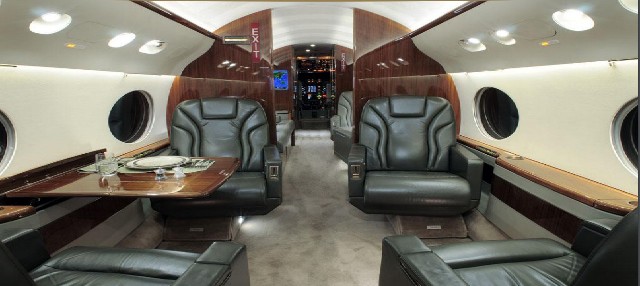

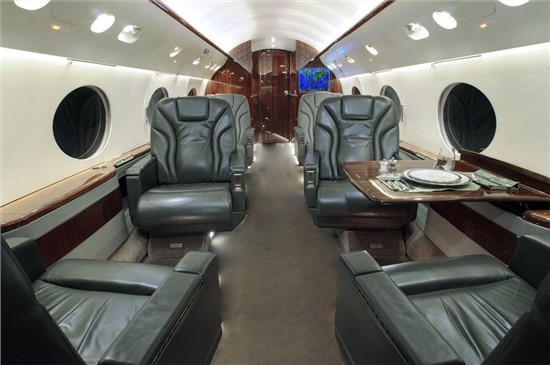

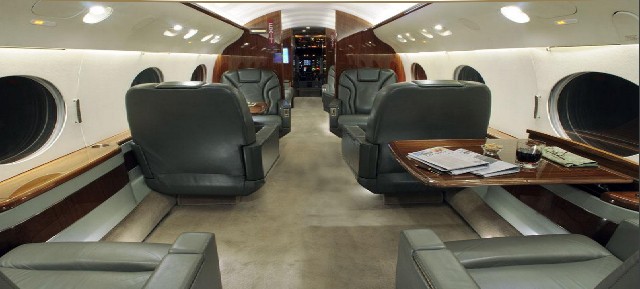

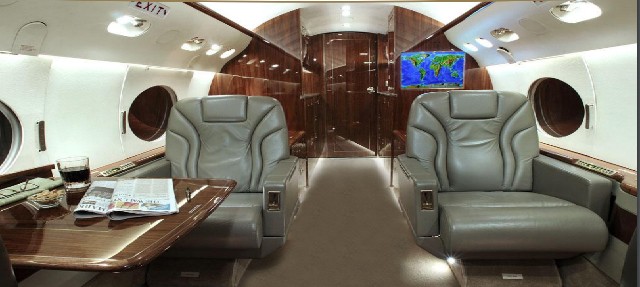

  • Mid & Aft Cabin: Six individual pedestal-mounted passenger seats with inboard and outboard tracking, recline and swivel with four in a forward club configuration and two forward facing in the aft portion of the cabin. The VIP seat has an armrest video monitor.‍

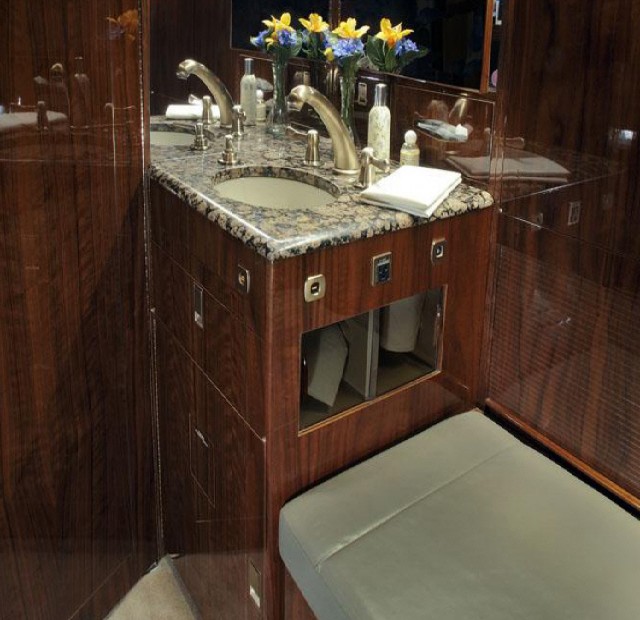

  • Lavatory: Forward crew lavatory and full aft lavatory.‍

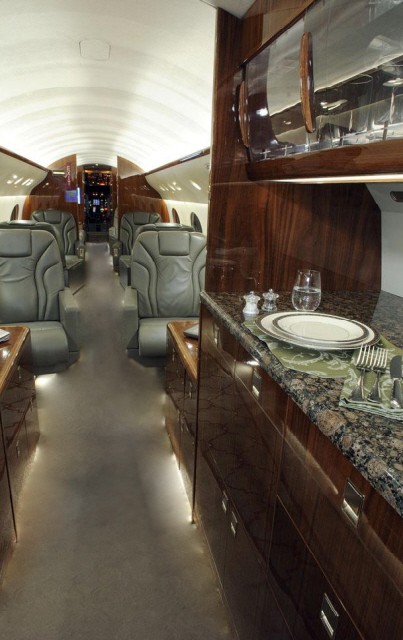

  • Aft Galley: Microwave oven and coffee maker, insulated ice drawer, trash compartment, and generous storage.

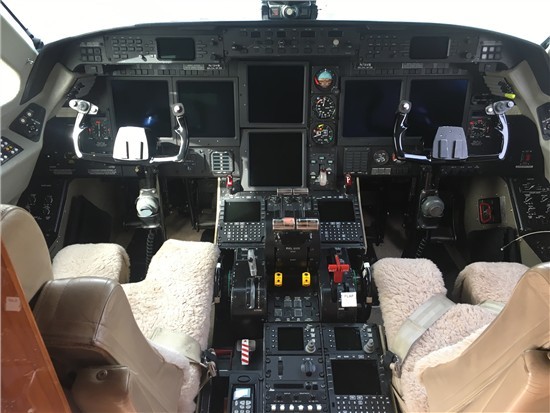

Avionics & Cockpit

  • Avionics: Honeywell Plane Deck
  • Flight Displays: Honeywell Plane Deck DU-885 LCD EFIS
  • ‍Flight Director: Dual Honeywell SPZ-8000 Flight Director, and swivel, with four in a forward club configuration and two forward-facing
  • Global Positioning System: Dual Honeywell 12-Channel GPS
  • Communications: Triple Collins VHF-422C Comms w/ 8.33 spacing
  • Navigation: Dual Collins VIR-432 Navs
  • Cockpit Voice Recorder: L3 A100A CVR
  • Flight Management System: Triple Honeywell Flight Management Systems w/ NZ-2010 6.1 Software
  • Inertial Reference Unit: Triple Honeywell Laseref IV IRUs
  • Distance Measuring Equipment: Dual Collins DME-422
  • Automatic Direction Finding: Dual Collins ADF-462
  • Transponders: Dual Collins TDR-94D Mode S Diversity transponders w/ Enhanced Surveillance and ADS-B Out
  • Traffic Alert and Collision Avoidance System: ACSS TCAS II / 2000 and Change 7.1 compliant
  • Weather Radar: Single Honeywell Primus-880 Radar
  • Terrain Awareness Warning System: Allied Signal Mark VII EGPWS
  • Emergency Locator Transmitter: Artex 406-2 ELT
  • SATCOM: Collins 906-4 SATCOM
  • High Frequency Radio: Dual Honeywell HF-190 radios
  • SELCAL: Avtex SELCAL

Optional Equipment Items

  • WIFI (GoGo ATG-4000 with Talk & Text)
  • XM Weather
  • ASC 266 Dunlap Wheels & Brakes
  • ASC 469A Water Line Ribbon Heater Upgrade
  • ASC 453A Main Entrance Door Handle Closeout
  • ASC 468A Cockpit Switch Indicator Lighting LED Moderization
  • ASC 564A APU-36-150 Upgrade
  • ASC 476A Honeywell Plane Deck Cockpit Display Upgrade
  • ASC 477A NZ 6.1 Software with SBA/LBV GPS
  • ASC 479 DL-1000 Data Loader
  • ASC 481 Automatic Dependence Surveillance - Broadcast Out (ADS-B Out)
  • ASC 502 Automatic Dependence Surveillance - Broadcast Out (ADS-B Out) Version 2
  • ASC 487 Stage 4 Noise Standards
  • ASC 501 Gust Lock Throttle Interlock Retrofit
  • STC ST04314AT-D Honeywell Laseref IV IRU Upgrade (Triple Laseref IV IRU)

Cabin Entertainment

  • Airshow Genesis
  • Baker CMS cabin management system
  • Cockpit USB outlet ports with on / off switch
  • Forward and aft flat screen monitors mounted in the bulkheads

Cabin Communications & Amenities

  • WIFI (GoGo ATG-4000 with Talk & Text)
  • EMTEQ LED Lighting

Exterior

  • Overall Snow White Top, Dark Blue Bottom with Blue Accent Stripes (Repainted in 2017)

‍

Maintenance Programs & Inspections Status

  • Operated per FAR §91
  • Enrolled on Brite Parts
  • Date of Manufacture: 1990
  • Certification Date: May 21, 1990
  • Maintenance tracked by CMP
Inspection Last Completed Next Due
150 Hour 12,317 Hrs 12,467 Hrs
300 Hour 12,395.7 Hrs 12,695.7 Hrs
450 Hour 12,099 Hrs 12,549 Hrs
900 Hour 11,870.8 Hrs 12,770.8 Hrs
1500 Hour 11,822.6 Hrs 13,322.6 Hrs
36 Month June 3, 2025 May 31, 2028
48 Month March 2, 2022 February 28, 2026
60 Month July 26, 2021 July 31, 2026
72 Month February 3, 2020 January 31, 2026
144 Month June 26, 2020 June 30, 2032
2000 Landing 5013 Landings 7013 Landings
4000 Landing 4000 Landings 9000 Landings
5000 Landing 5000 Landings 10,000 Landings
1990 Gulfstream GIV S/N 1136 - exterior of white and blue aircraft for sale, parked outside, Mikolay Jet group logo

View brochure

The information in this page is based on what is believed to be the best available information but is not a representation. Prospective purchasers should make their own pre-purchase inspection. Aircraft subject to prior sale.
