2006 Hawker 850XP S/N 258782 - N830

Interior

The 9-passenger executive interior is configured as follows:

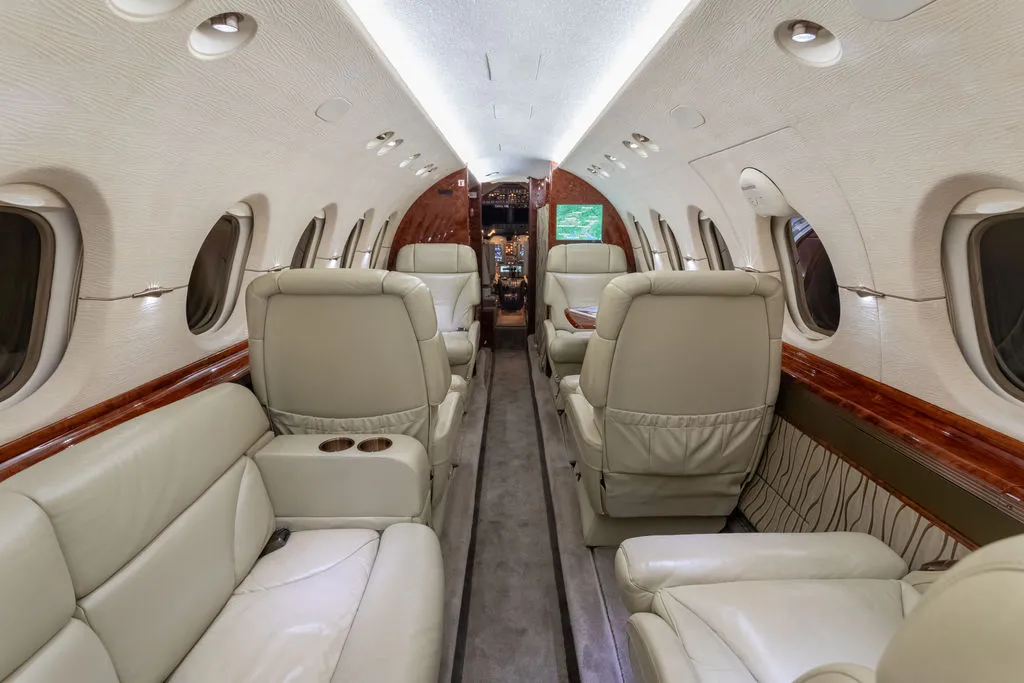

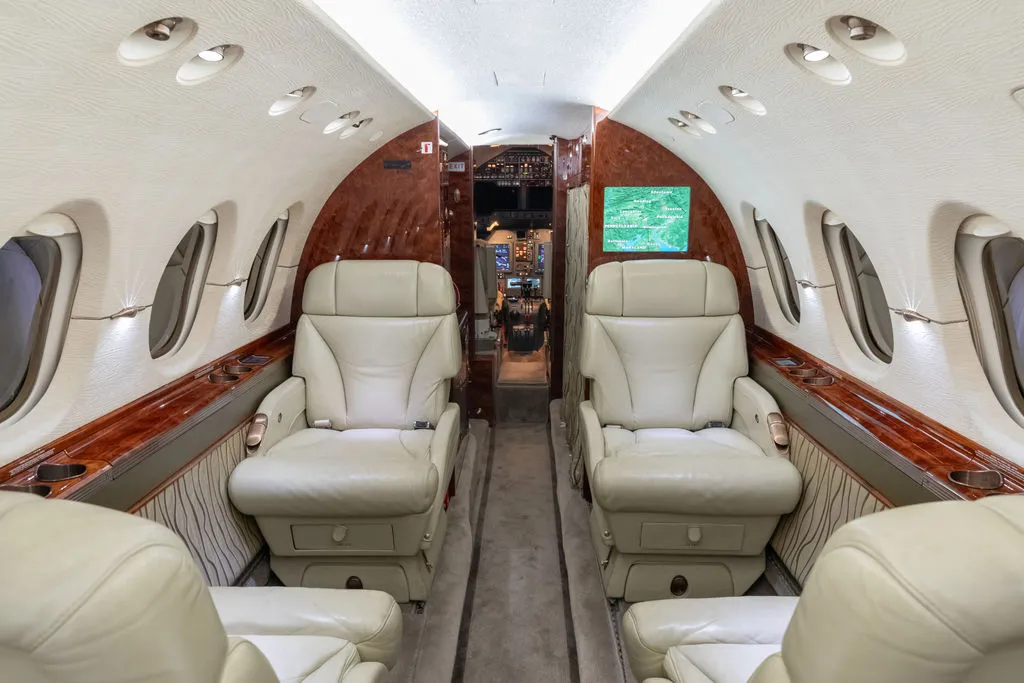

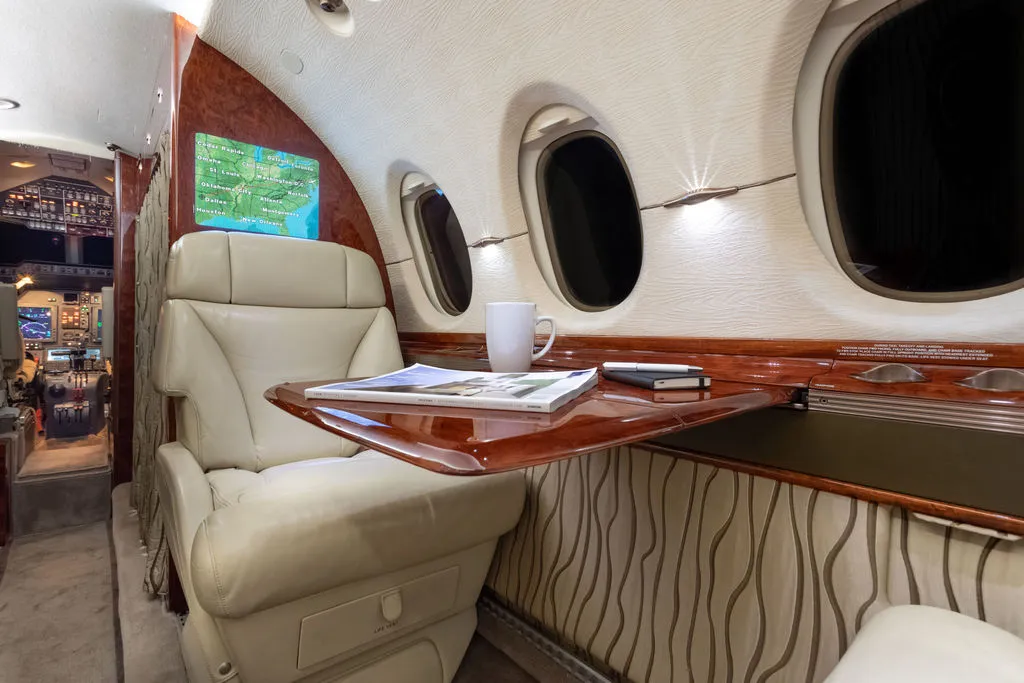

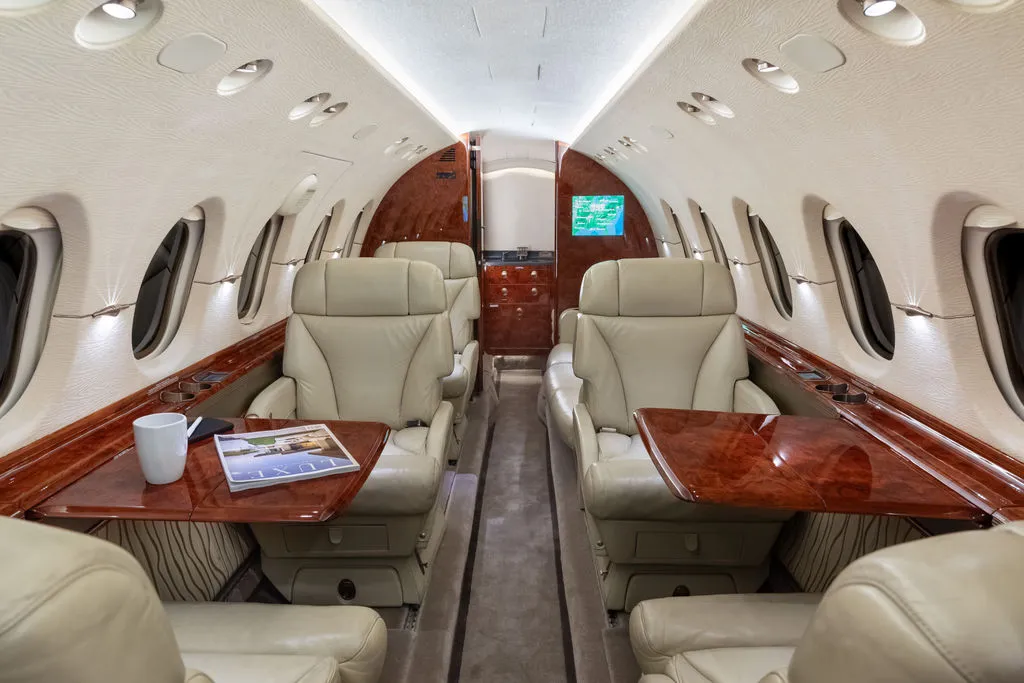

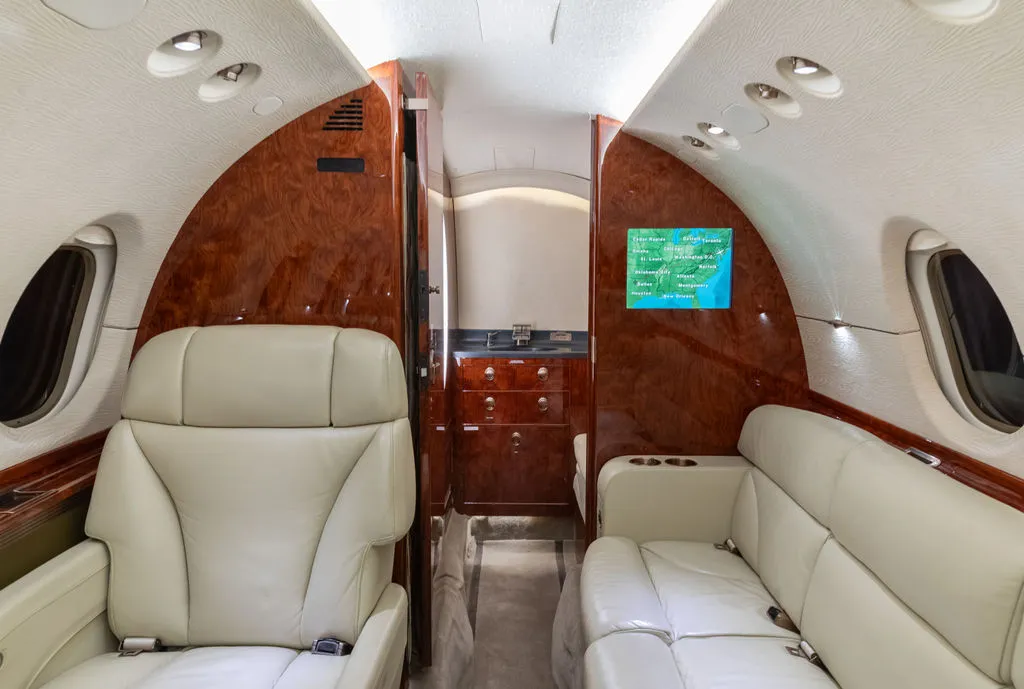

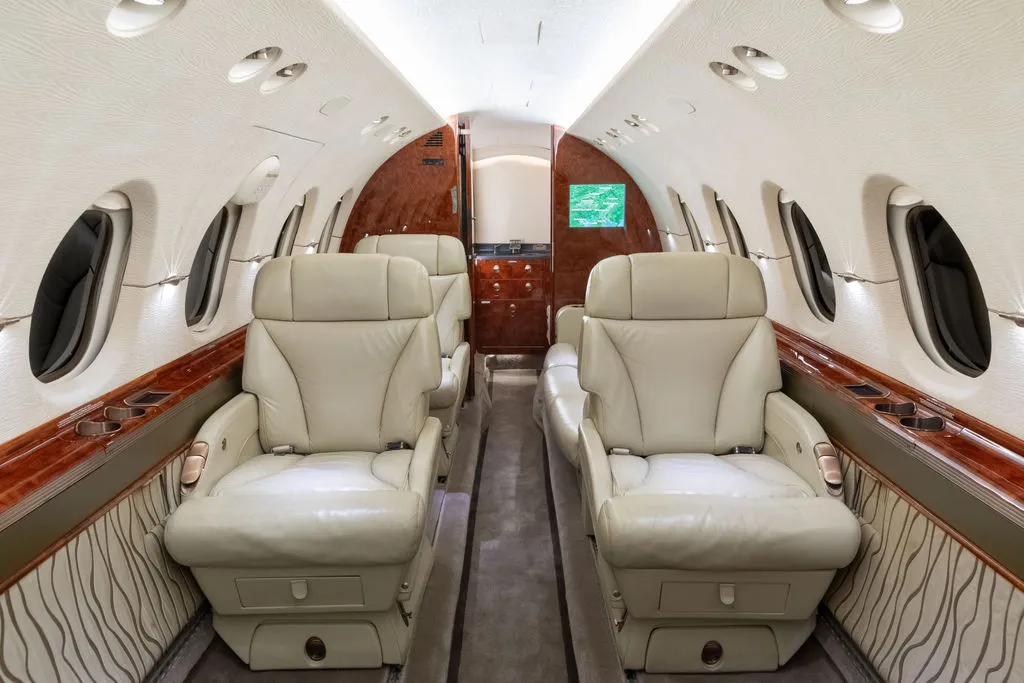

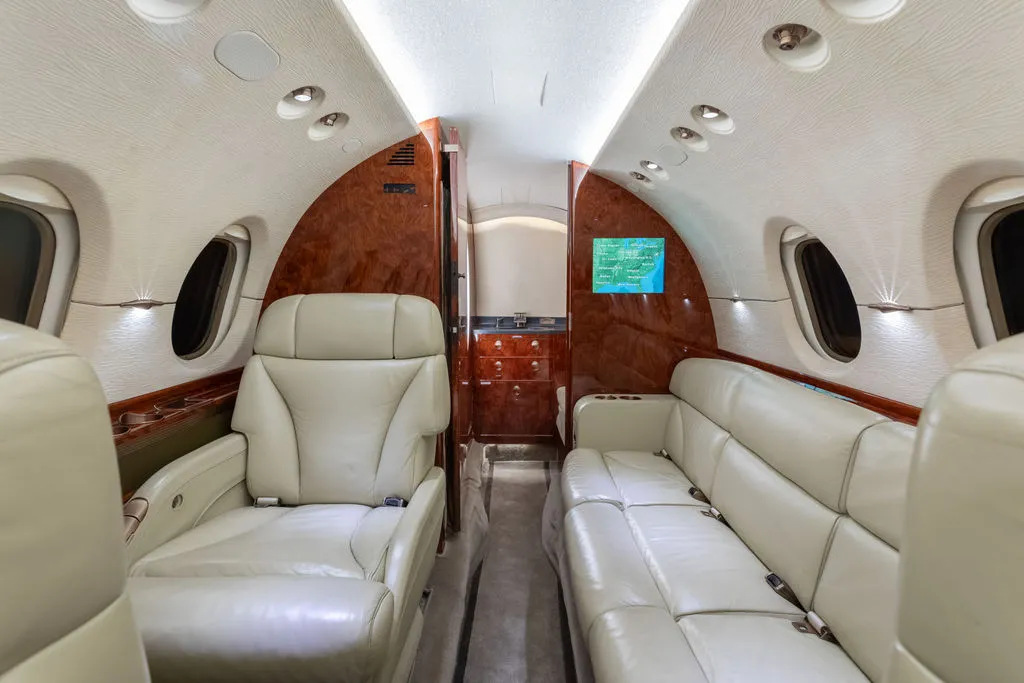

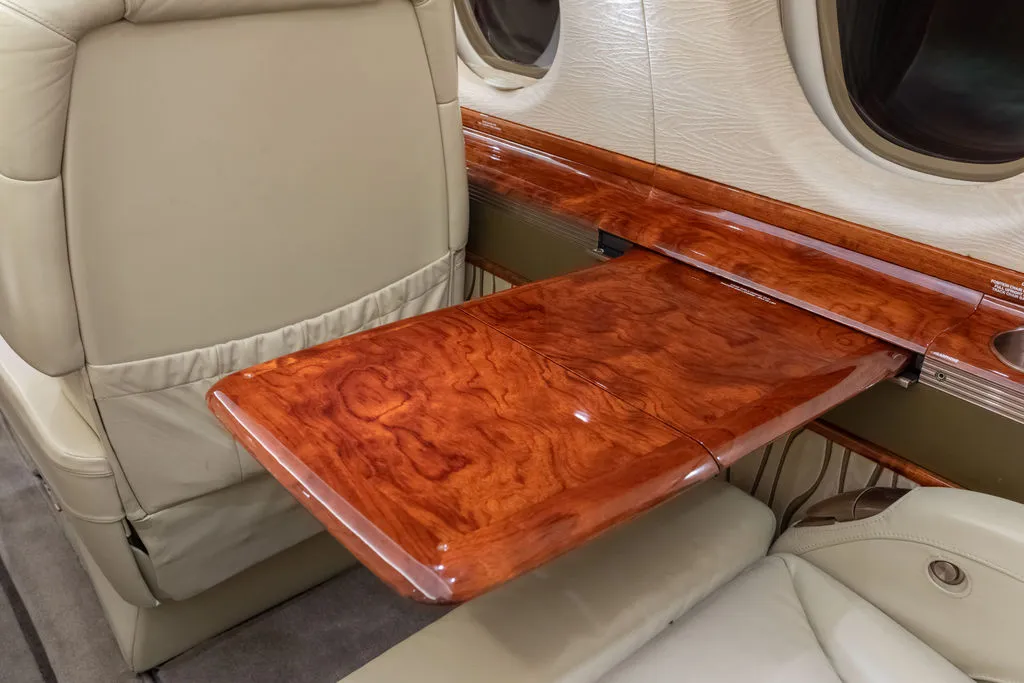

• Cabin: Five individual pedestal-mounted passenger seats with inboard and outboard tracking, recline and swivel. An aft 3-place side-facing couch and a third crew member jumpseat in the cockpit.

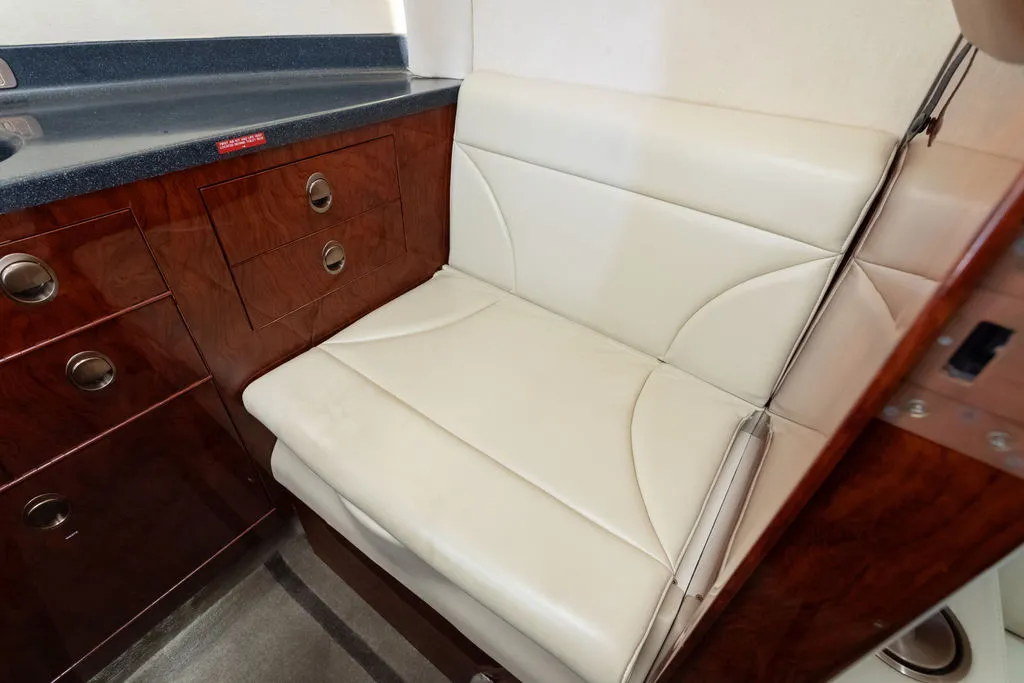

• Aft Lavatory: Lavatory with flushing toilet, sliding privacy doors, and a belted passenger seat.

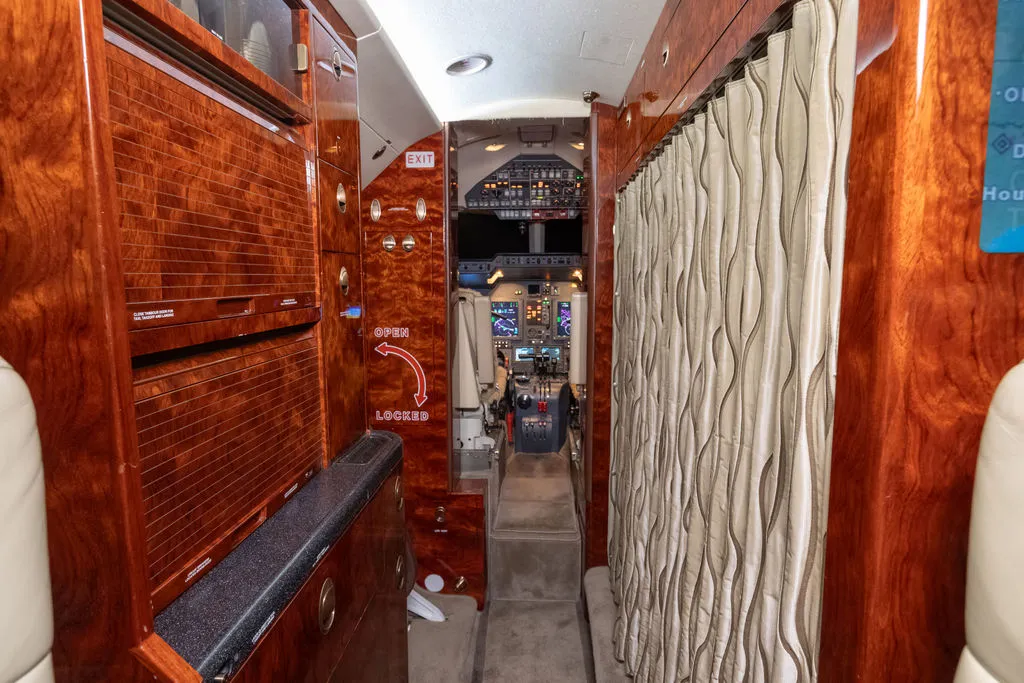

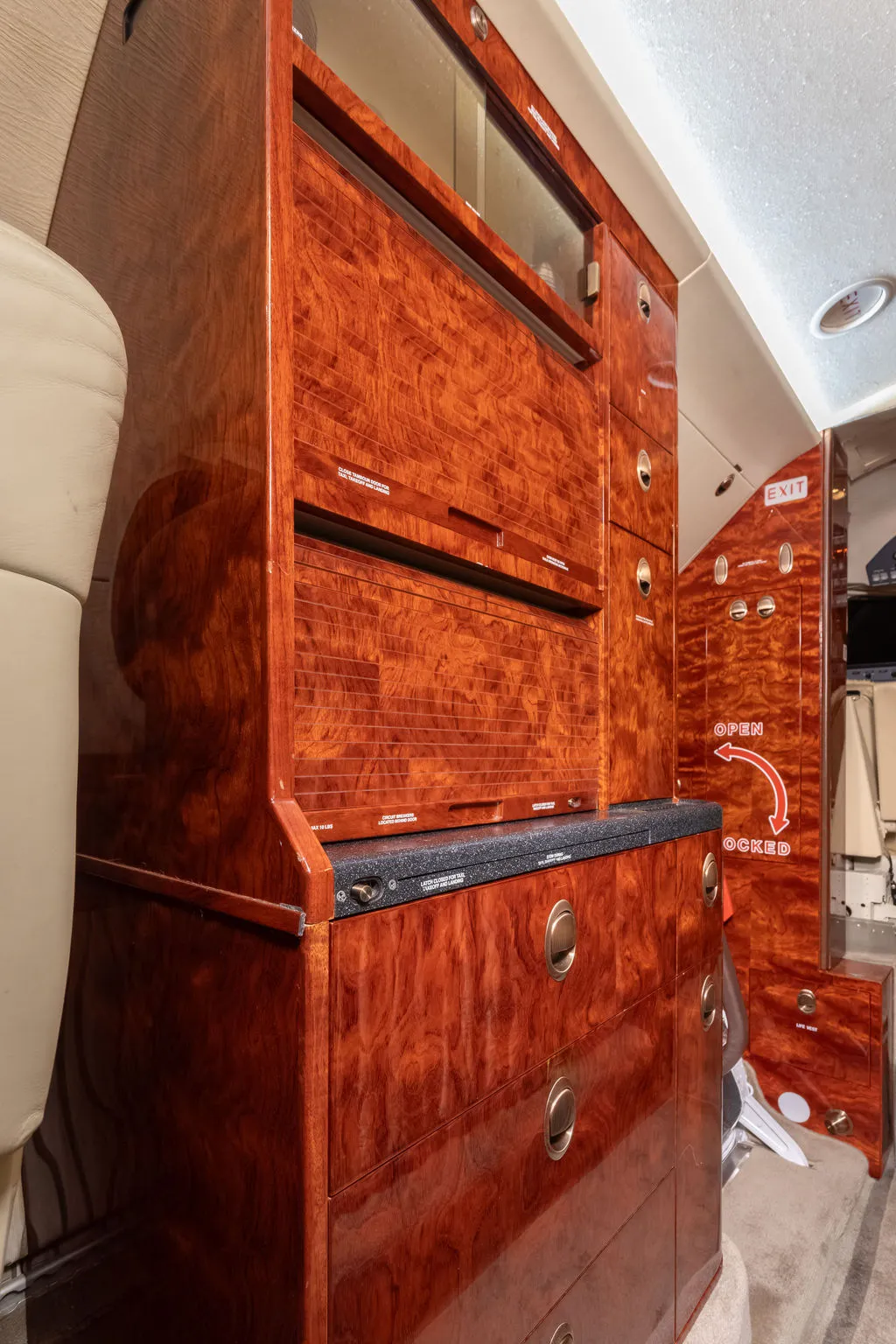

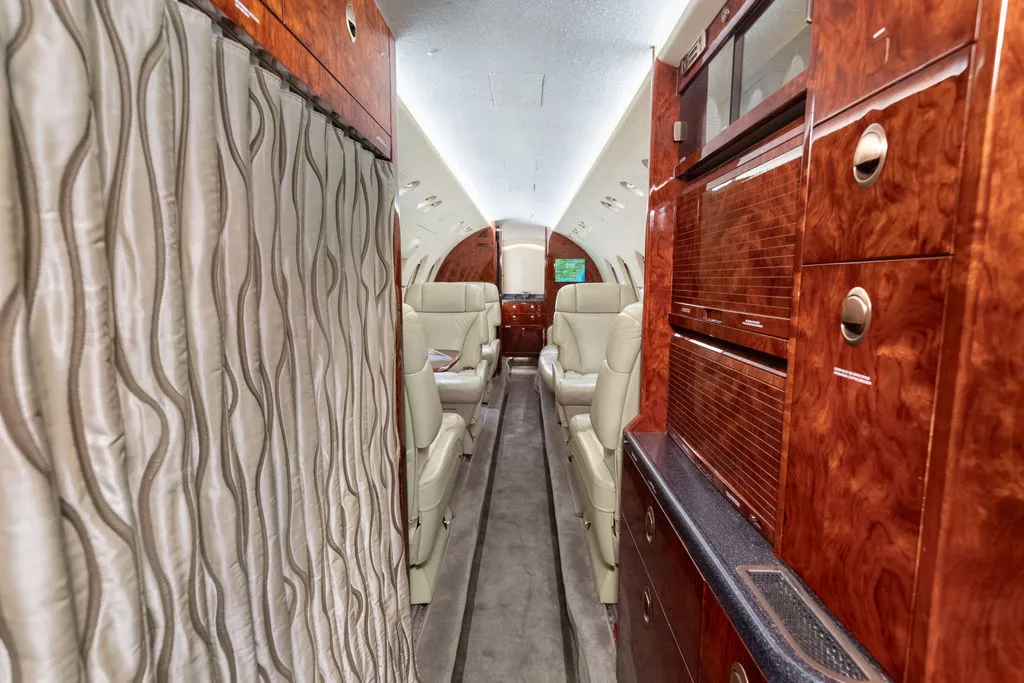

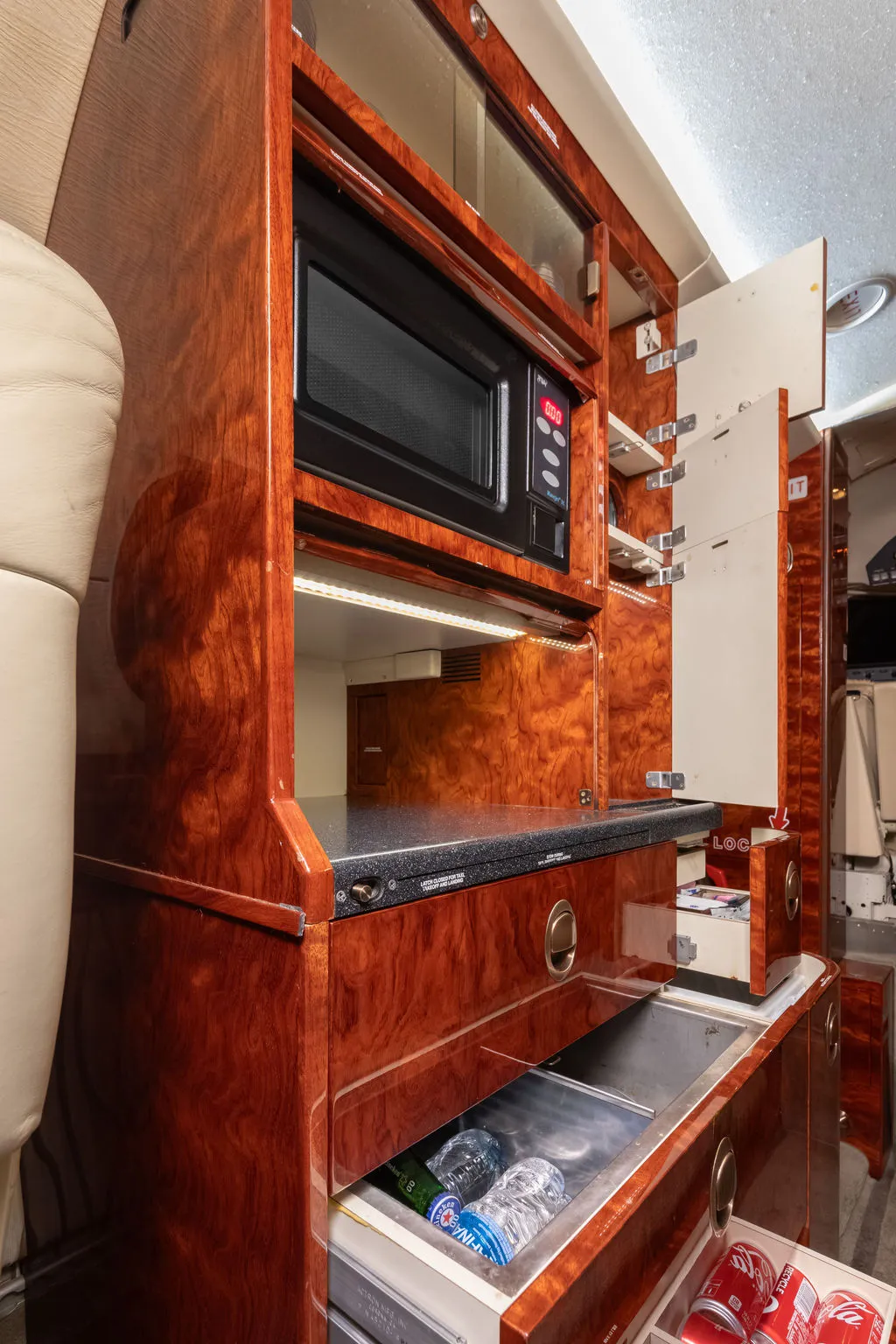

• Galley: Microwave oven and coffee maker, insulated ice drawer, trash compartment, dual cup dispensers, generous storage, pullout work area & 115V 60 Hz electrical outlet.

(New Headliner and Carpet Installed in 2022)

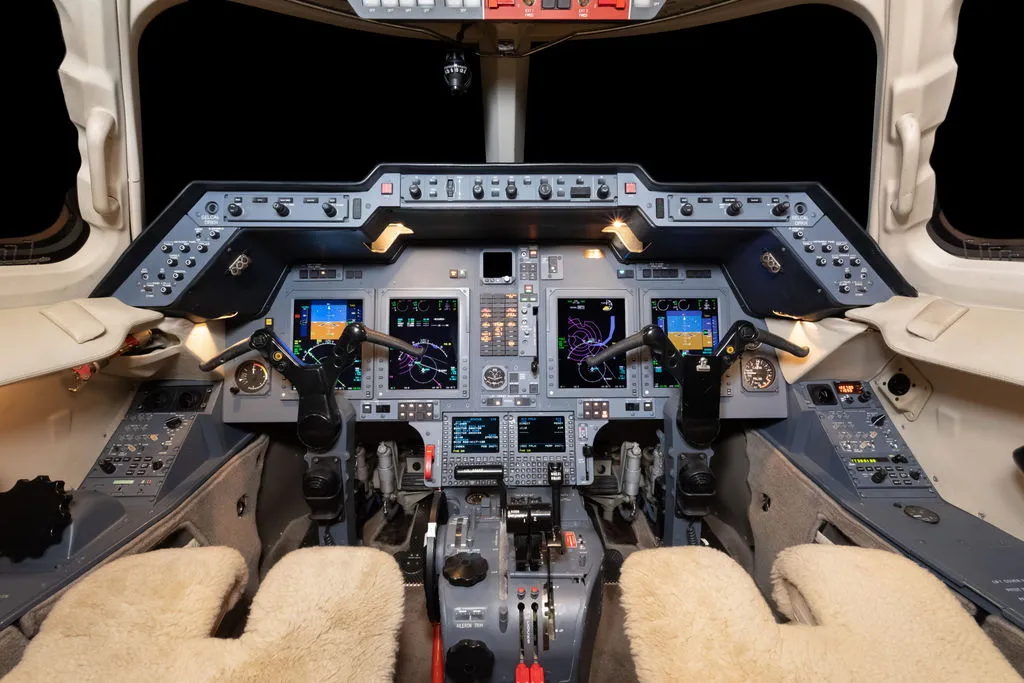

Avionics & Cockpit

• Avionics: Collins Aerospace Pro Line 21
• Flight Displays: Four Collins Pro Line 21 8x10 in Active Matrix Liquid Crystal Displays
• ‍Cursor Control Panels: Dual Collins CCP-3000 Cursor Control Panels
• Global Positioning System: Dual Collins GPS receiver w/ WAAS
• Communications: Dual Collins Transceivers
• Navigation: Dual Collins Navigation Receivers
• Cockpit Voice Recorder: Yes (120 minute)
• Flight Management System: Dual FMS-6000 w/ WAAS/LPV
• Integrated Flight Information System: Single Collins IFIS-5000
• Distance Measuring Equipment: Dual Collins DME
• Flight Guidance System: Collins Pro Line 21 FGS
• Attitude/Heading Reference System: Collins AHC-3000 AHRS
• Air Data Computers: Dual Collins ADC-3000 ADC
• Transponders: Dual Collins TDR-94D Mode S Diversity transponders w/ Enhanced Surveillance and ADS-B Out
• Traffic Alert and Collision Avoidance System: Single Collins TCAS-4000 TCAS II w/ resolution advisory and Change 7.1 compliant
• Weather Radar: Single Collins TWR-850 Turbulence Doppler weather radar
• Terrain Awareness Warning System: Honeywell Mark V TAWS
• Emergency Locator Transmitter: Artex 406-2 ELT w/ navigation interface
• SATCOM: AirCell ST-3100 Iridium w/ dual cordless handsets‍
• High Frequency Radio: Collins HF-9000 w/ SELCAL
• Maintenance Diagnostic System: Collins MDC-3110
• Provisions:
  • Dual IFIS Provisions
  • Flight Data Recorder (FDR) Provisions

Optional Equipment Items

• WIFI (GoGo ATG-5000 with Talk & Text)
• WAAS
• ADS-B Out
• LoPresti Lighting
• Airshow 4000 with Dual Monitors
• Cabin Audio w/ dual DVDs and Sirius XM
• FDR Provisions
• Dual IFIS Provisions
• Meggitt Mark II Secondary Flight Display
• Datalink w/ Worldwide Weather Maps
• XM Radio
• Rosen Sunvisors
• Exterior Door Locking Package
• Therapeutic Oxygen
• Supplemental Long Range Oxygen

Cabin Entertainment

• Rockwell Collins CMS-1 cabin management system
• Seven LCD touch screen monitors, controllers & headphone jacks
• Dual 15-inch flat screen monitors

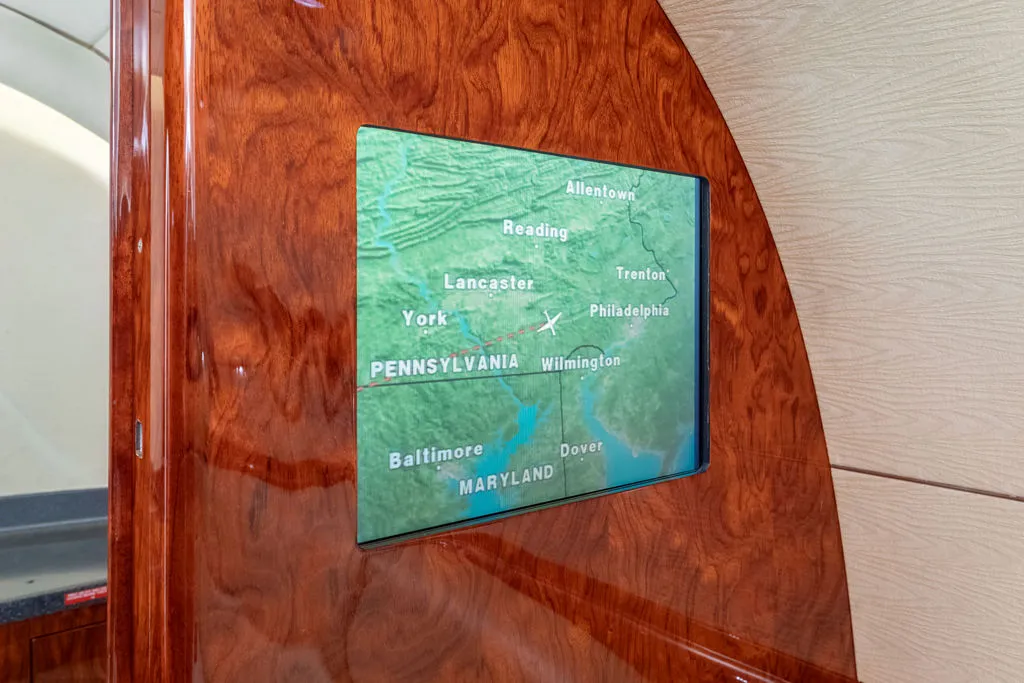

• Airshow 4000 flight mapping system w/worldwide maps & cockpit controller
• Dual channel XM radio

Cabin Communications & Amenities

• WIFI (GoGo ATG-5000 with Talk & Text)
• AirCell ST-3100 Iridium w/ dual cordless handsets
• LED Lighting
• Five 115V/60Hz Outlets

Exterior

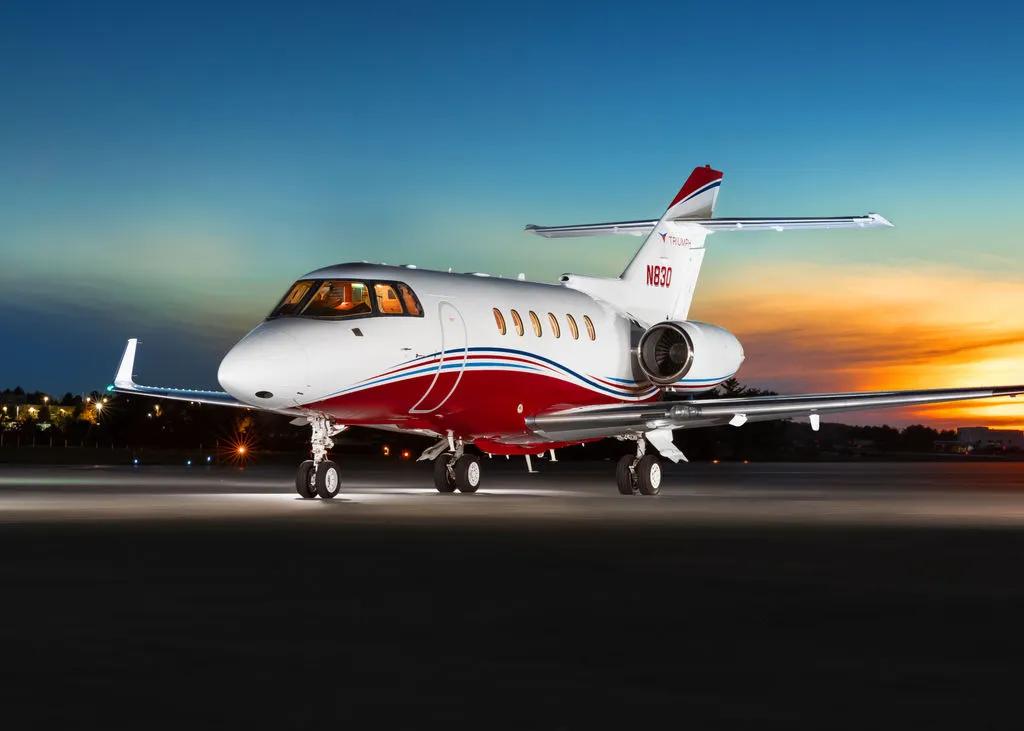

• Overall Matterhorn White w/ Cranberry, Ocean Blue, Moroccan Red and Electric Blue Accent Stripes (Repainted in 2022)

‍

Maintenance Programs & Inspections Status

• Operated per FAR §91
• Date of Manufacture: 2006
• Certification Date: May 19, 2006
• Maintenance tracked by CAMP
• Engines Enrolled on Honeywell MSP Gold
• APU Enrolled on Honeywell MSP
