2021 Bombardier Global 7500 S/N 70071 - N777KQ

Interior

The four-zone, 14-passenger executive interior with neutral fabrics, leather and dark wood finishes that is configured as follows:

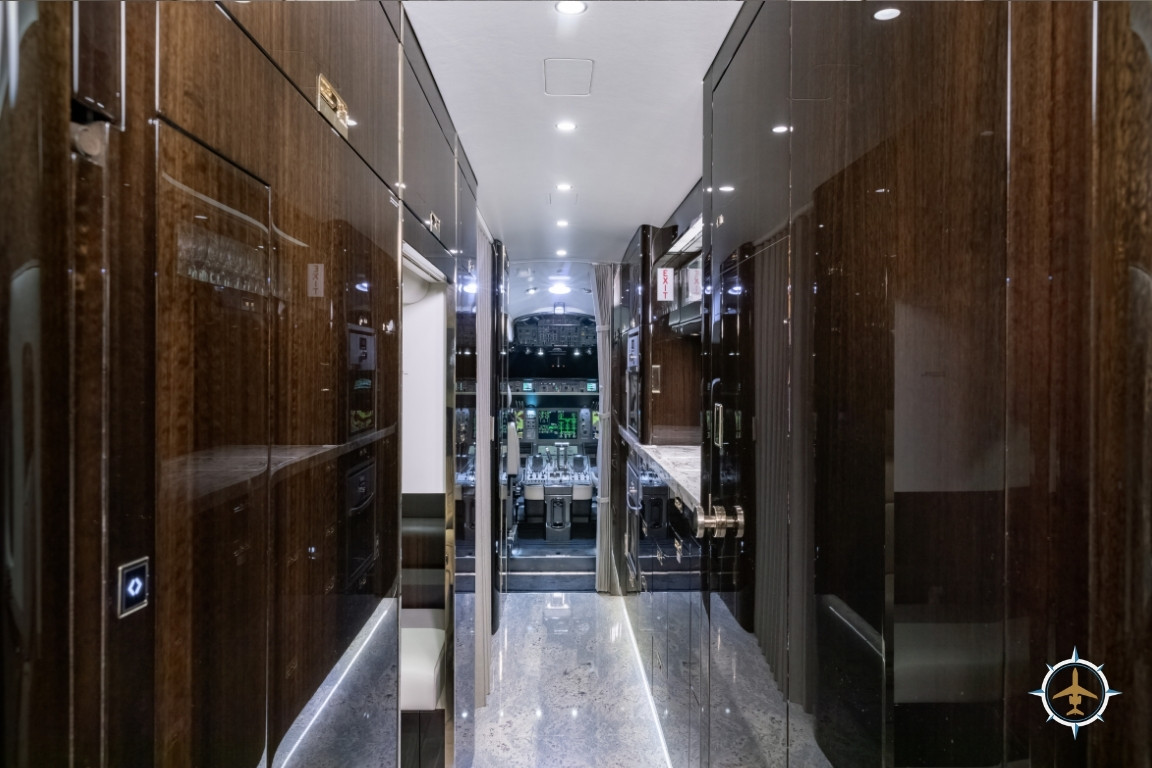

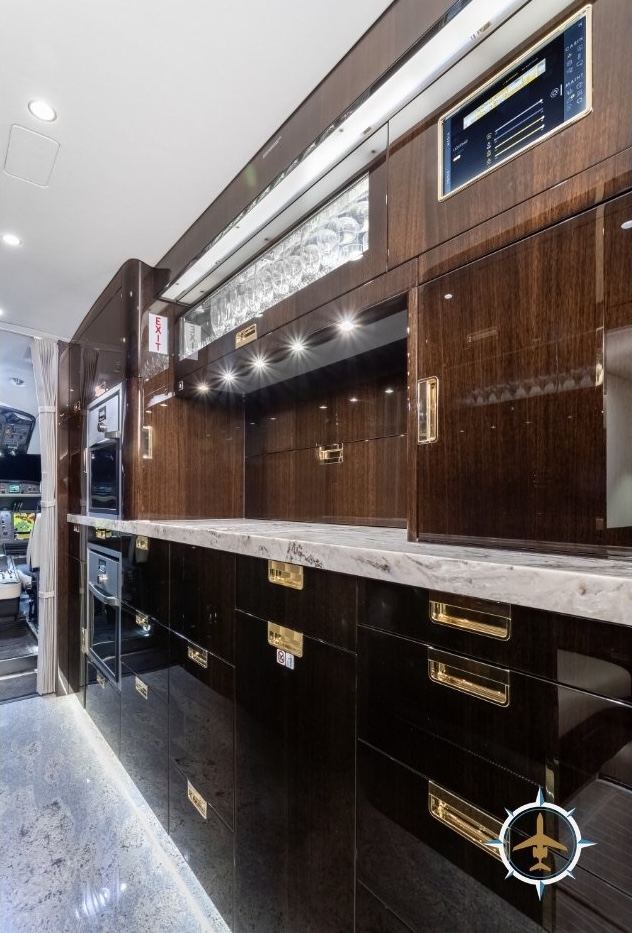

• Aircraft Entry Area: The aircraft galley is installed in the forward area of the aircraft and includes ample storage, power outlets, dual ovens, a dedicated ice drawer, a solid surface countertop, a large waste drawer, and numerous storage drawers or compartments. Opposite the galley, there is a crew rest area with a single seat. There is also a forward crew lavatory with a vanity and sink. The forward entry area and lavatory is separated from the main cabin by a powered sliding door.

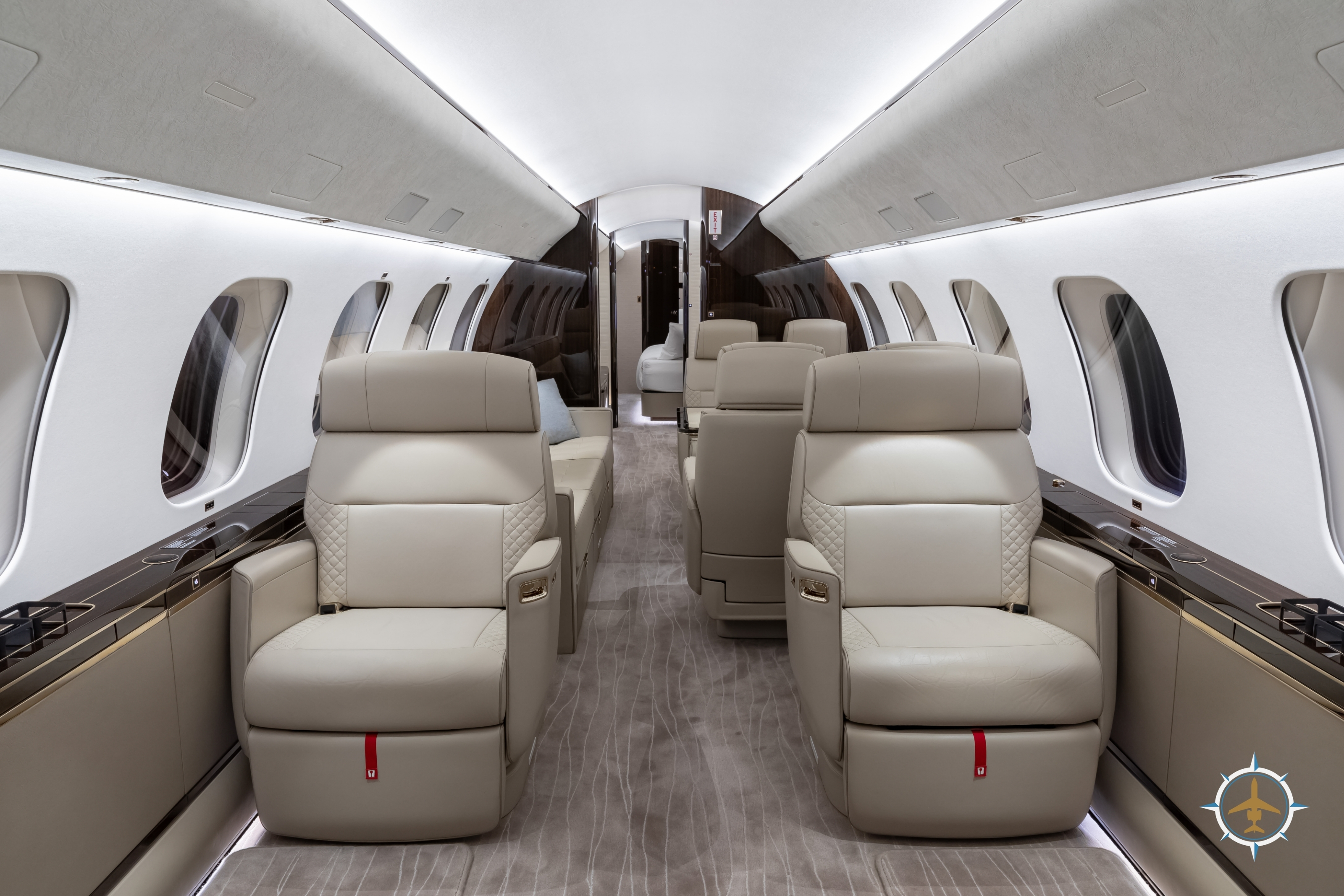

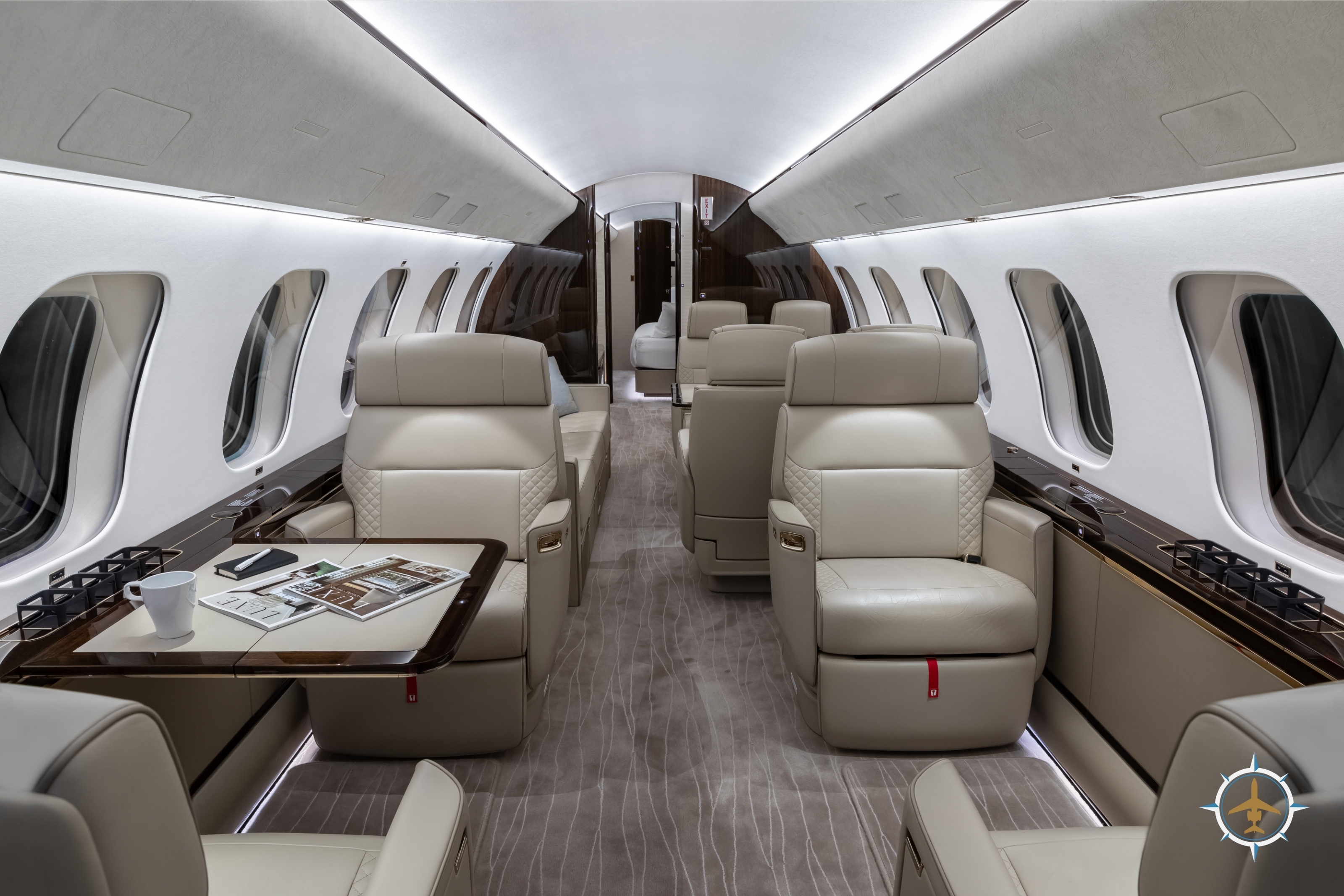

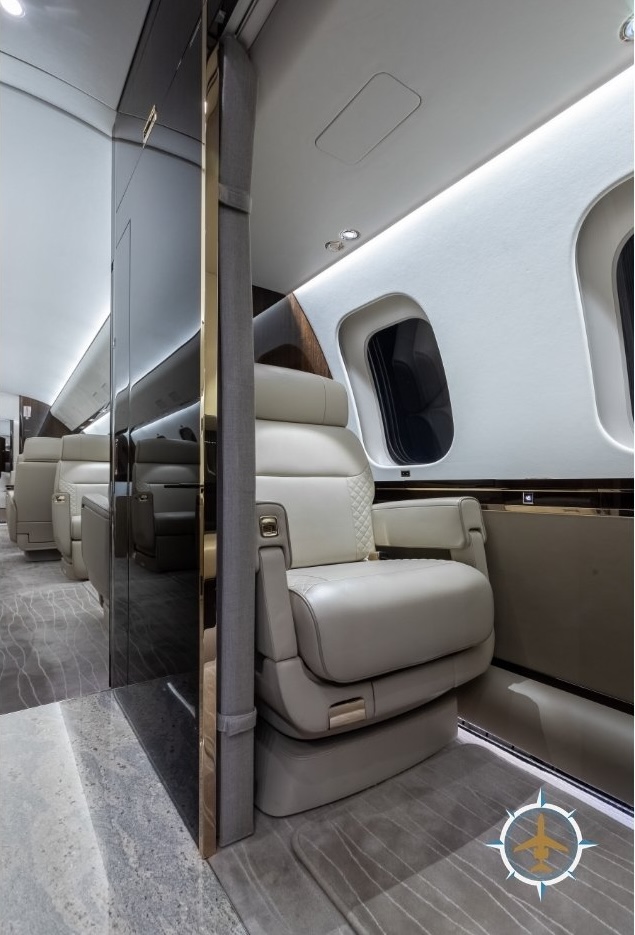

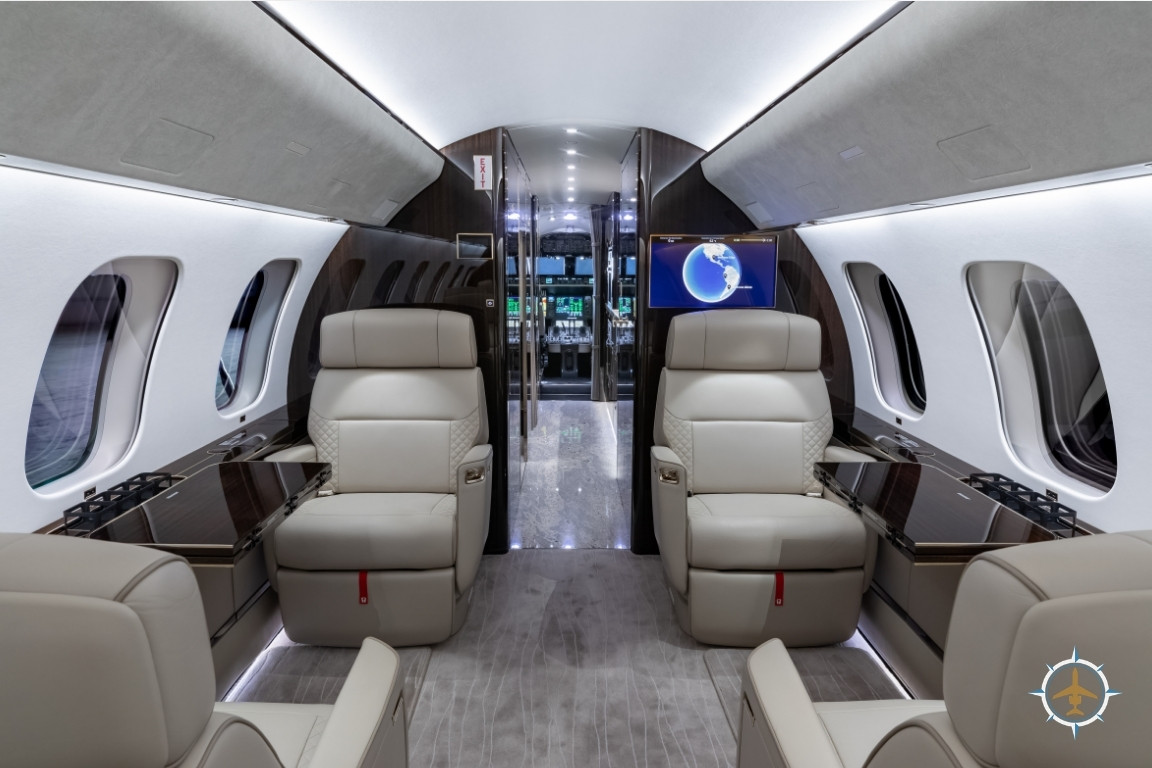

• Zone 1 (Forward Cabin): Four individual seats arranged in a four-place club with pedestal-mounted seats that can swivel, recline, track and are berthable. There are two fold out tables with ample work area. Side ledges have storage and cabin controls. There is a 24" HD monitor mounted on the forward right hand bulkhead.‍

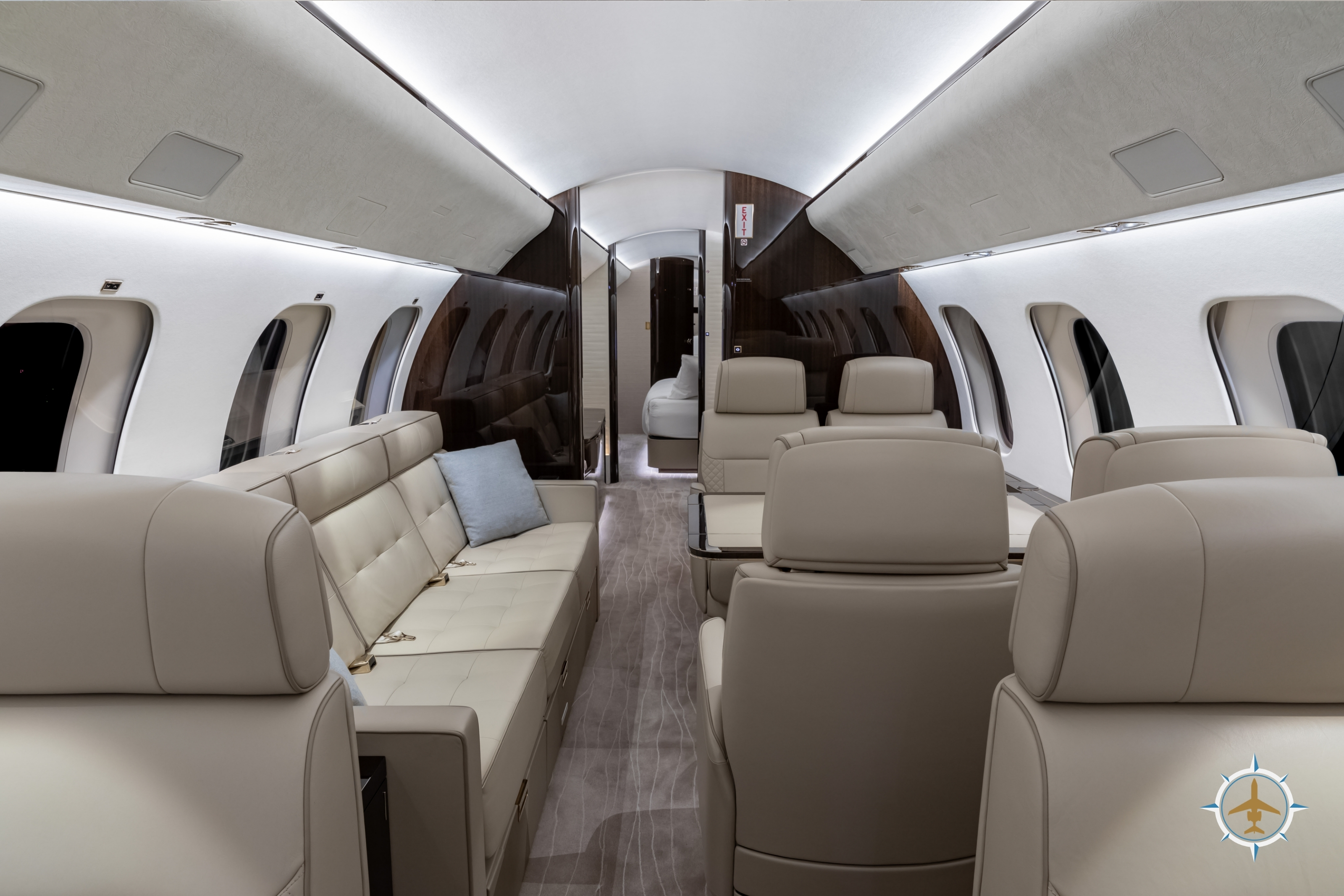

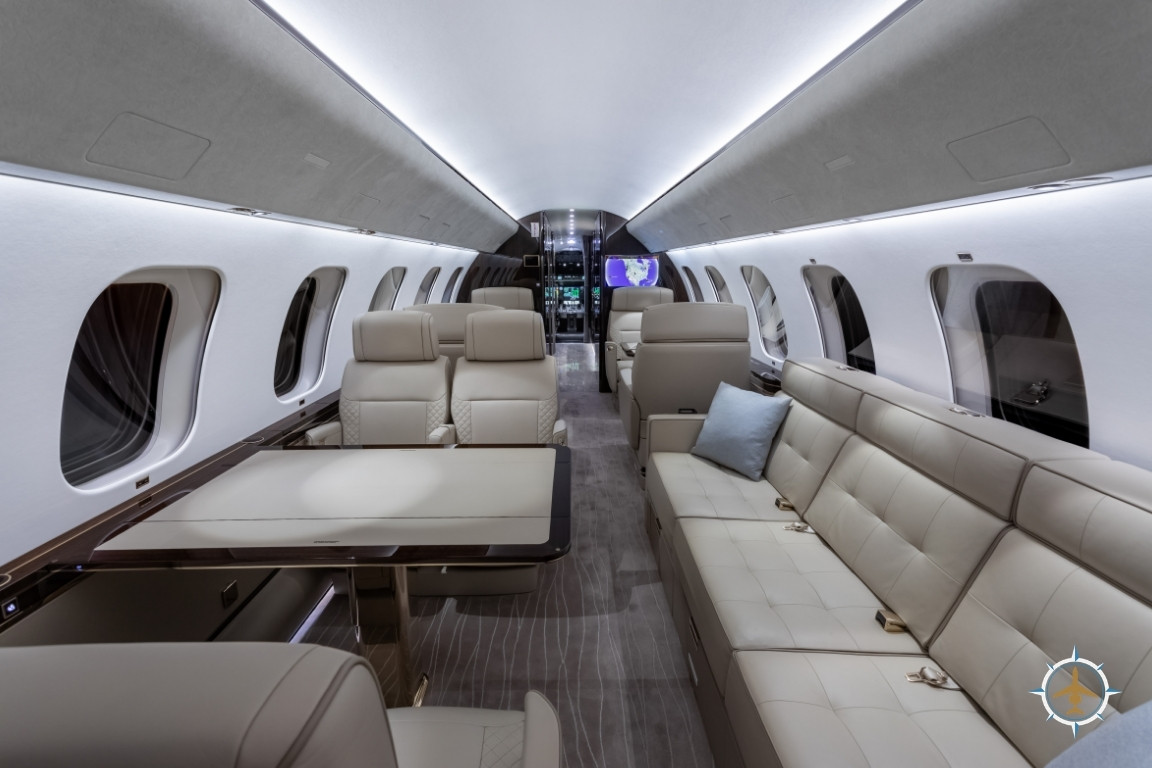

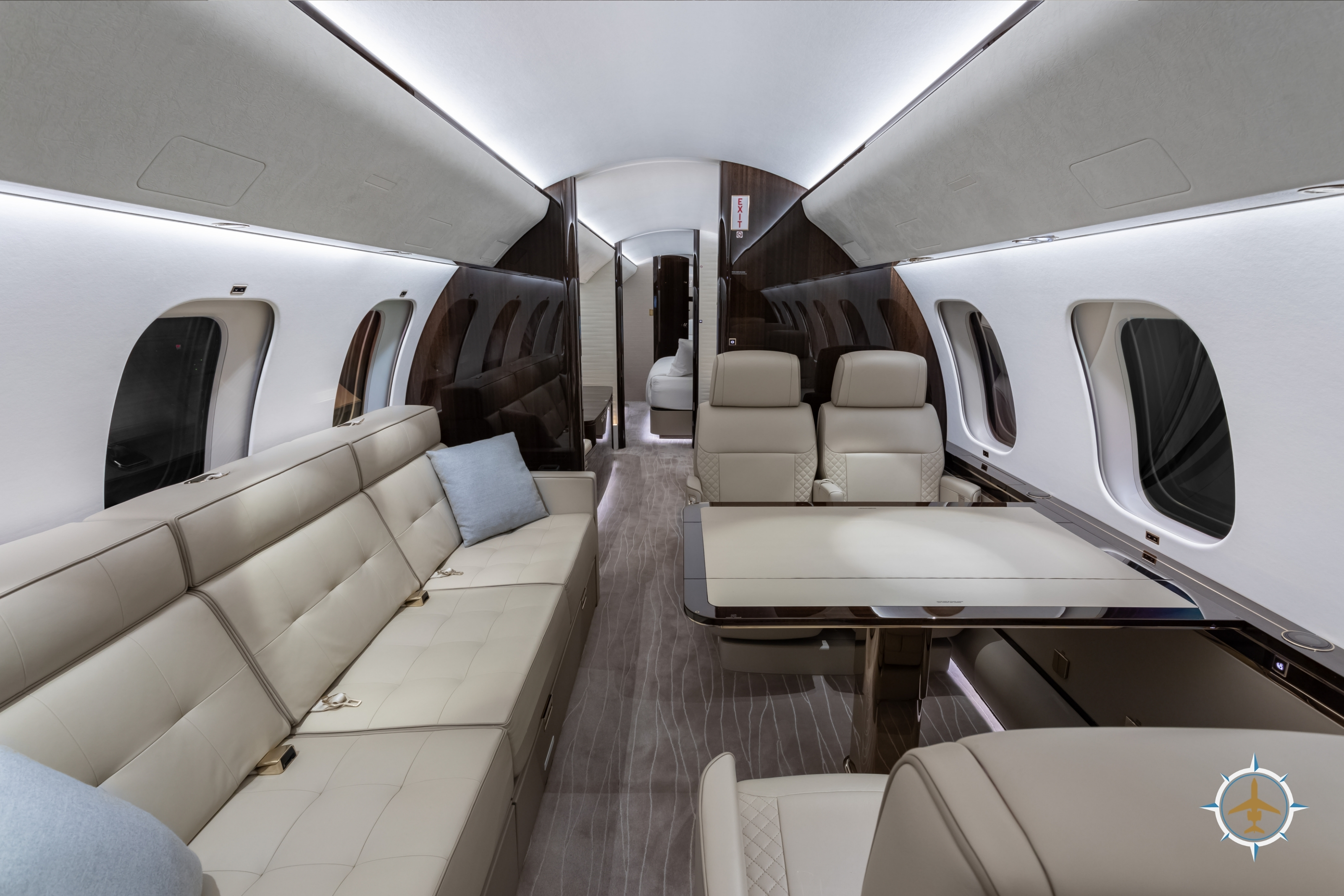

• Zone 2 (Fwd Mid Cabin): This area features a three-place divan opposite a four-place dining/conference arrangement. The divan and the conference grouping can be converted to allow berthing.‍

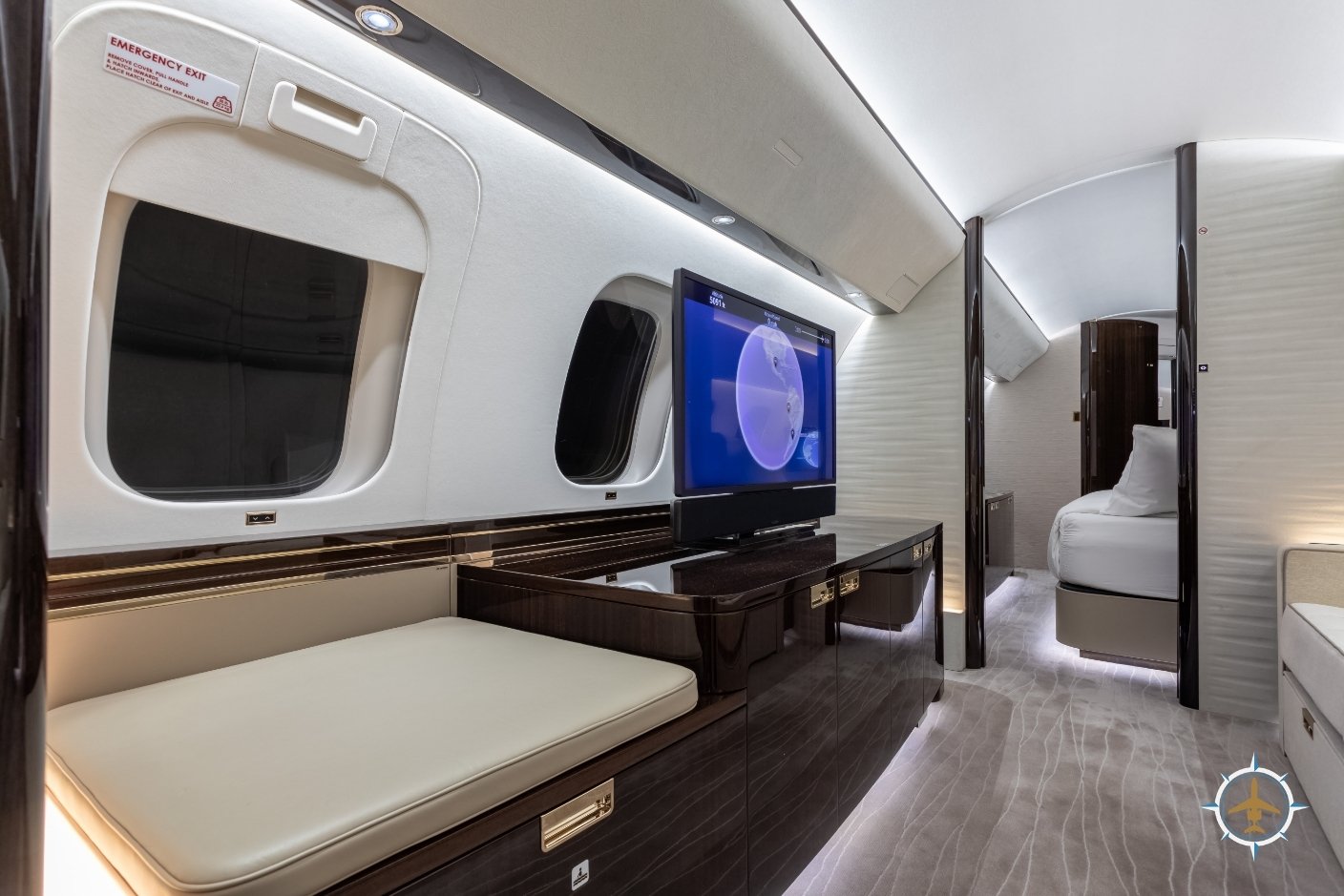

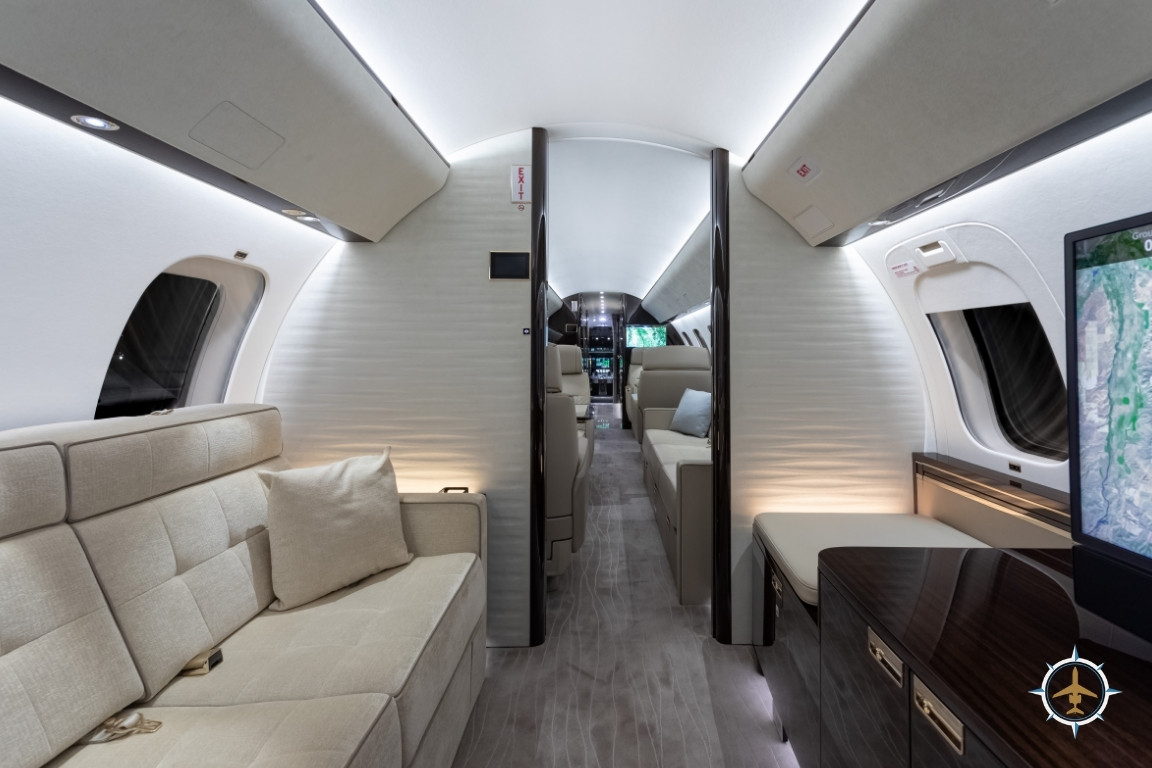

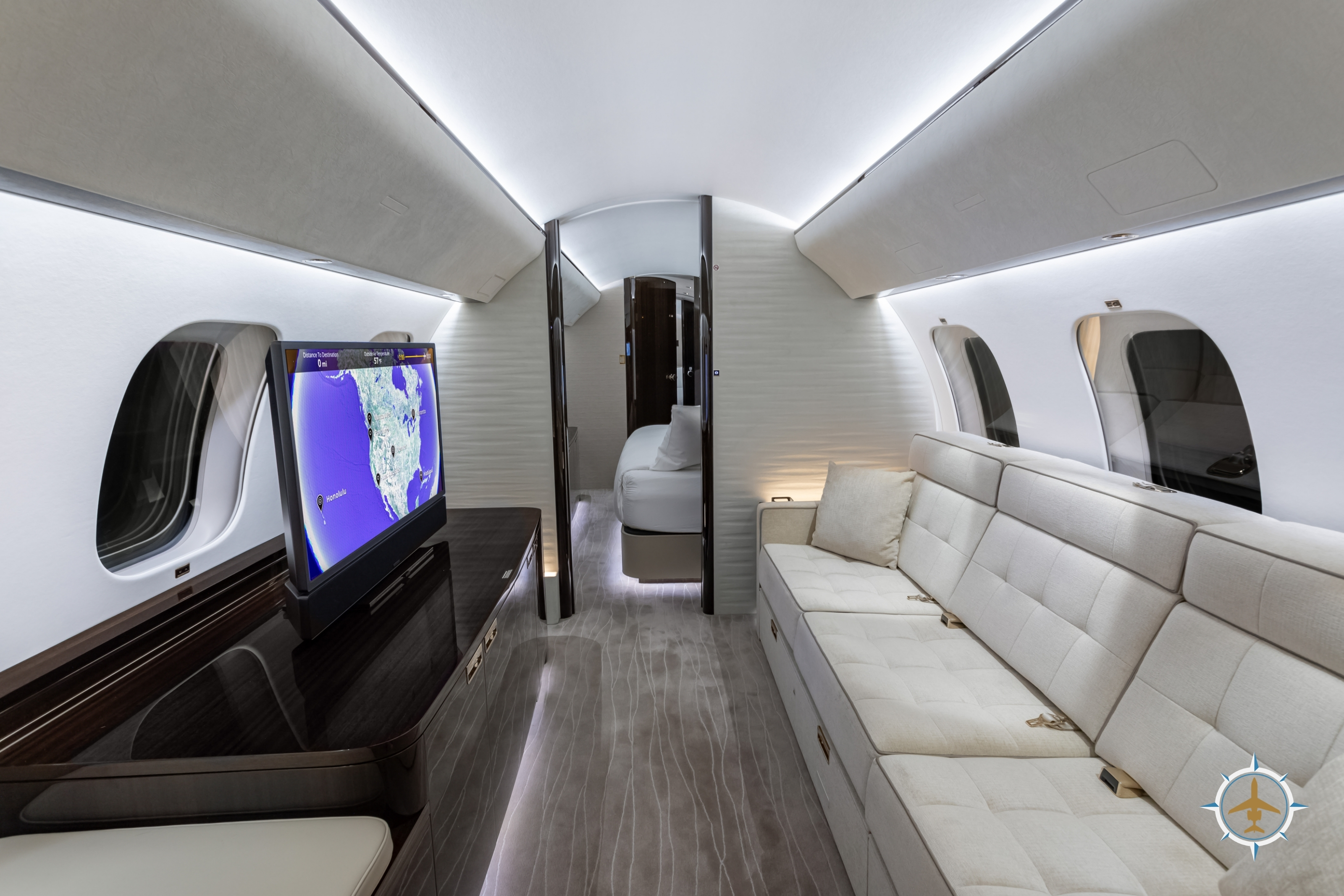

• Zone 3(Aft Mid Cabin): This zone is separated from the first two zones by a powered sliding door and features a credenza cabinet with a 40" HD monitor opposity of a three-place divan. The three-place divan can be converted to allow berthing. ‍

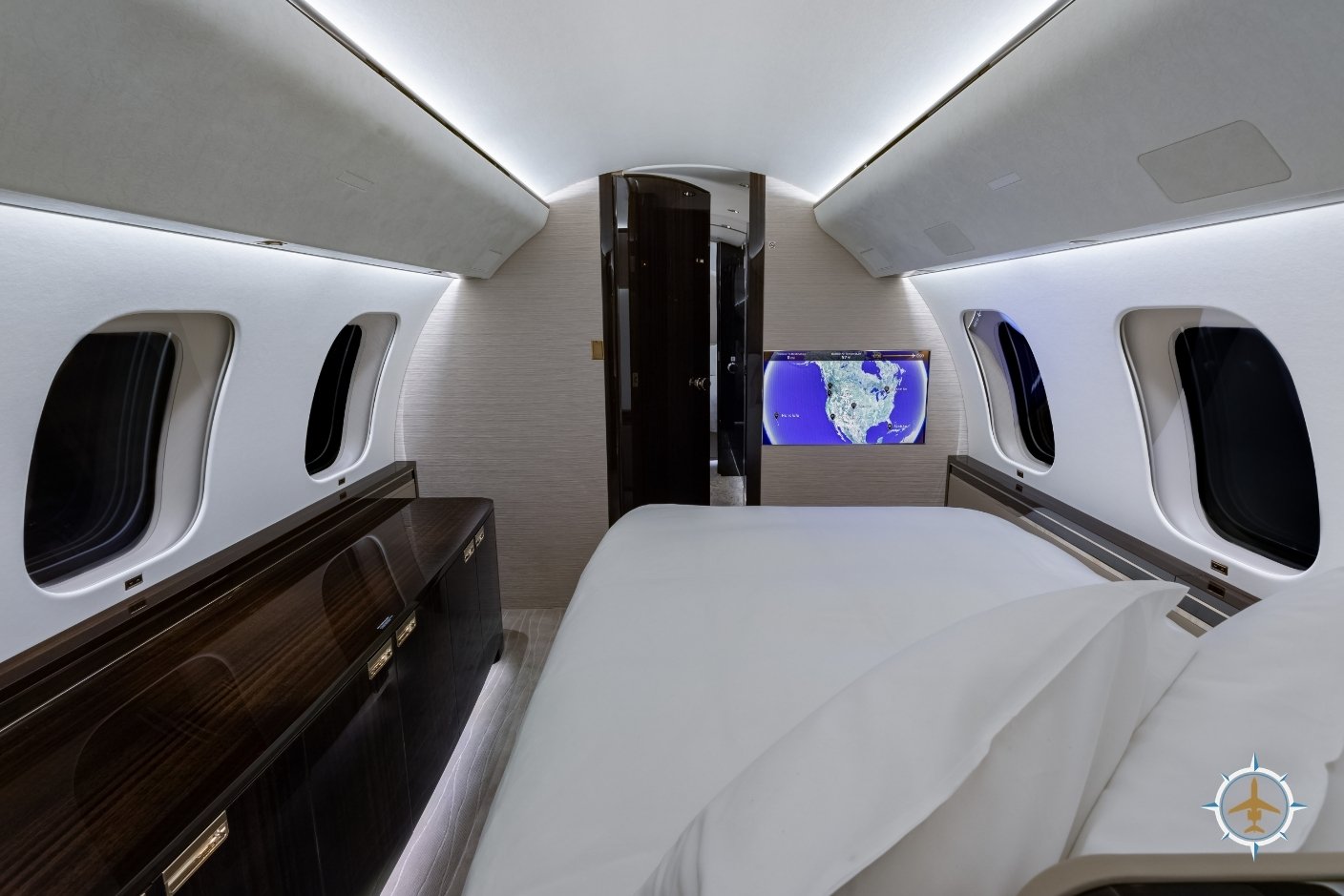

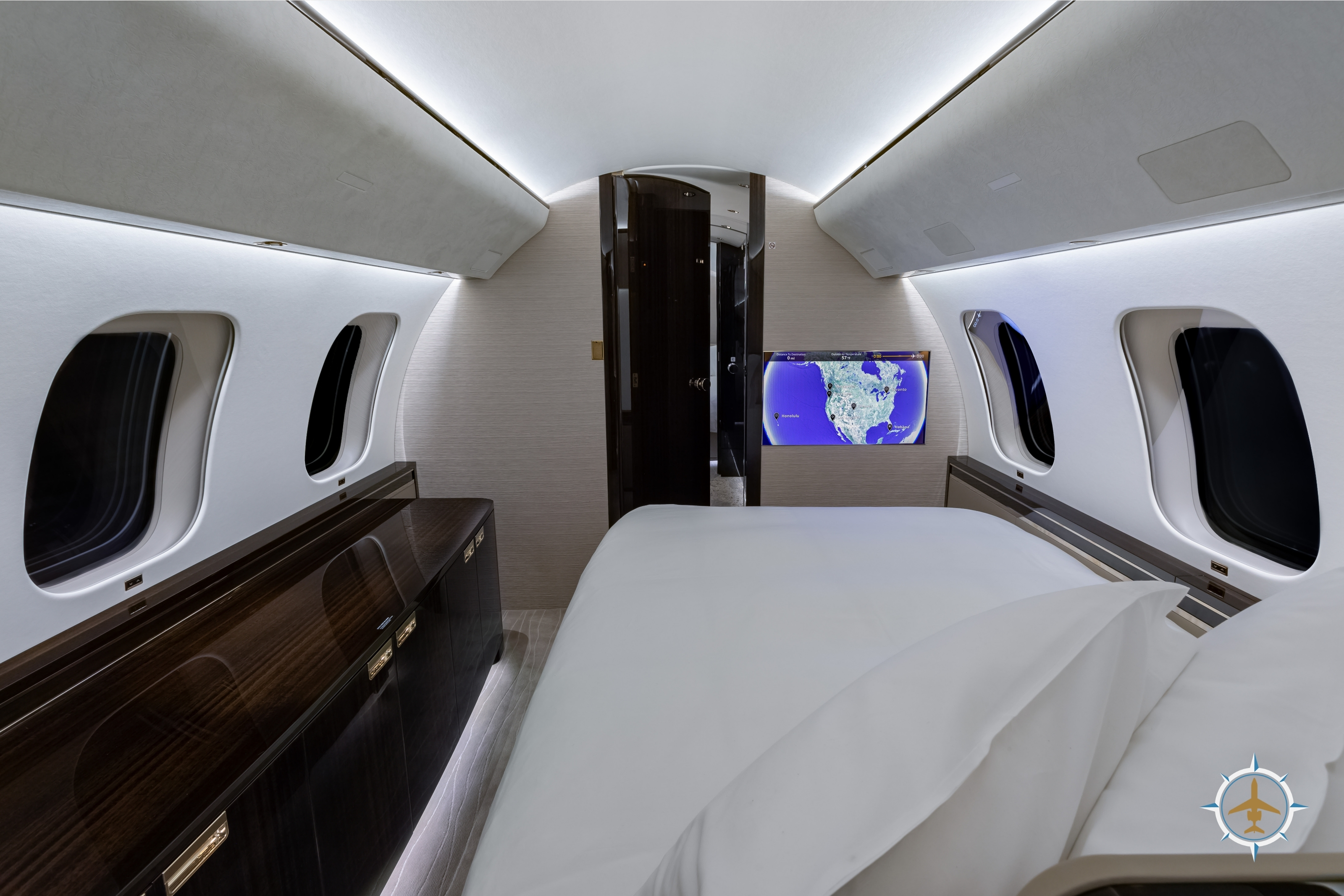

• Zone 4 (Aft Cabin): This private aft stateroom is separated by a powered sliding door and features a fixed large bed, opposite a narrow storage credenza. There is a 32" HD monitor mounted on the left hand aft bulkhead at the foot of the bed.‍

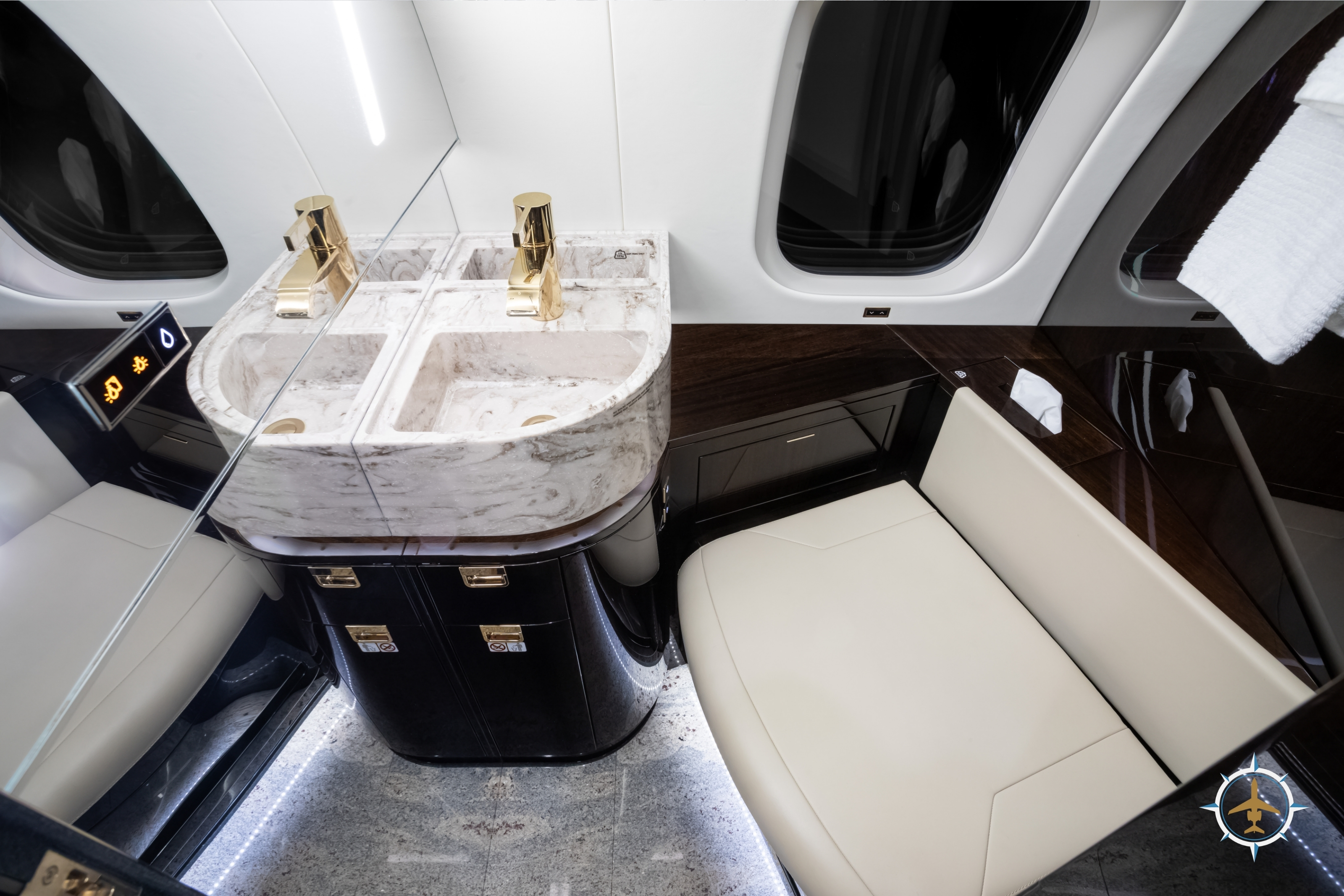

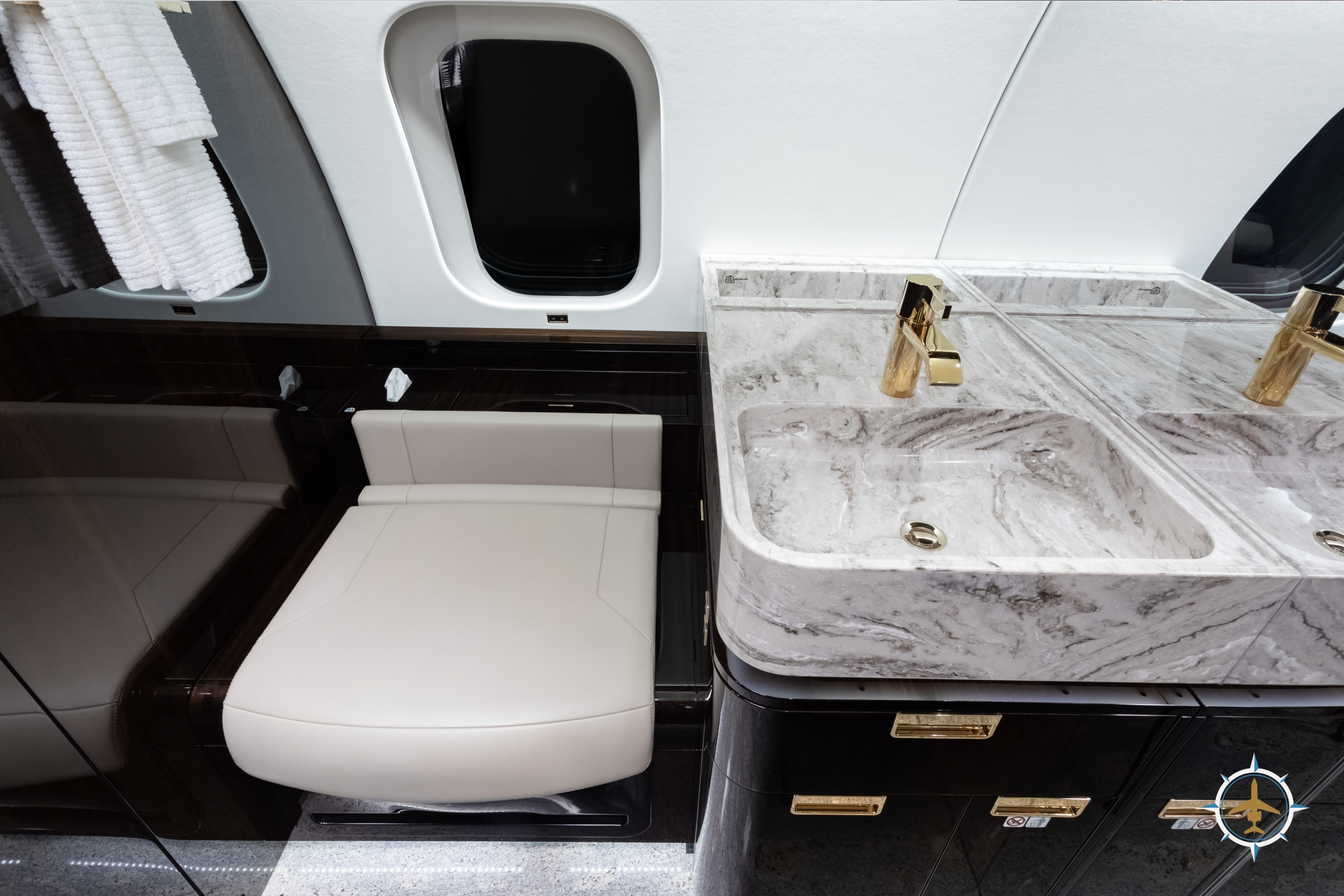

• Aft Lavatory: Separated by a hinged privacy door, the lavatory features a flushing toilet, storage, a vanity cabinet with sink and faucet. Access to the pressurized, heated baggage compartment is via a hinged bulkhead door.

Avionics & Cockpit

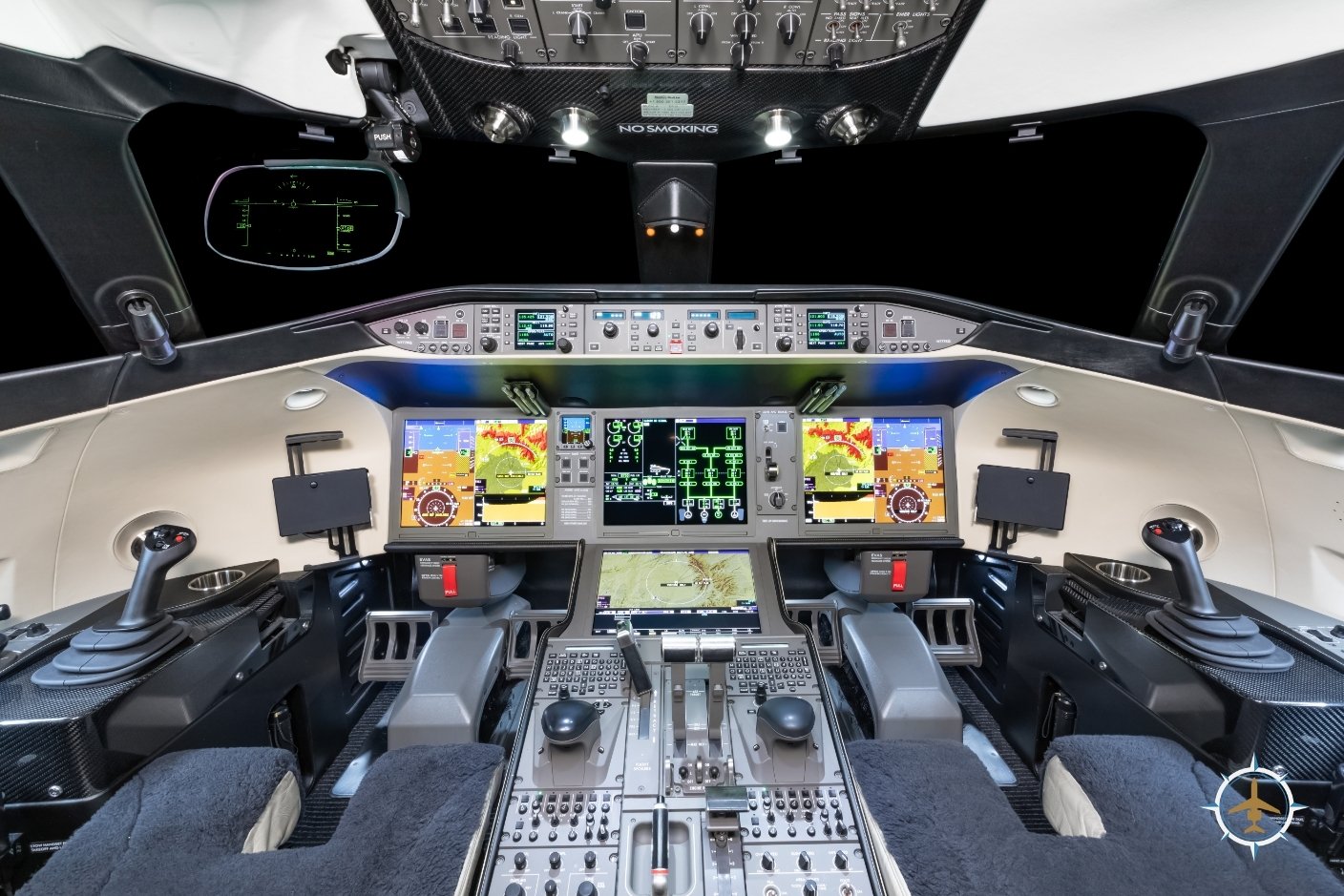

• Avionics: Global "Vision" Flight Deck consisting of the Rockwell Collins ProLine Fusion Avionics Suite
• Flight Displays: Four large-format high-resolution Active Matrix Liquid Crystal Displays
• Automatic Flight Control System: Collins AFCS
• Flight Management System: Collins FMS with WAAS / LPV
• ‍‍Global Positioning System: Dual Collins GPS
• Inertial Reference System: Triple Collins IRS
• Autothrottle: Yes
• Synthetic Vision: Yes
• Integrated Flight Information System: Triple IFIS
• Communications: Collins Transceivers
• Navigation: Collins Navs
• Cockpit Voice Recorder: L3 Harris CVR
• Flight Data Recorder: L3 Harris FDR
• Aircraft Data Computer: Collins Air Data Computers
• Electronic Integrated Standby Instrument: Yes
• Automatic Direction Finding: Collins ADF
• ‍Distance Measuring Equipment: Dual Collins DME‍
• Transponders: Dual Collins Mode S Transponders w/ ADS-B Out‍
• Traffic Alert and Collision Avoidance System: Collins TCAS II with Change 7.1 and ADS-B Out‍
• Weather Radar: Collins Multiscan Weather Radar‍
• Terrain Awareness Warning System: Yes
• Radio Altimeter: Collins Radio Altimeter‍
• Emergency Locator Transmitter: Yes‍
• SATCOM: Iridium‍
• High Frequency Radio: Dual Collins HF Transceiver
• Datalink & Selective Calling (SELCAL) System: Yes
• Heads-Up Display with Enhanced Vision System: Yes

Optional Equipment Items

• Third IFIS
• Predictive Windshear
• Vertical Weather
• Second Datalink
• Surface Management System - Airport Moving Map
• Lightning Detection
• EVAS
• Second DFCU
• Underfloor Heat in Entrance & Aft Lav
• 40" Credenza Monitor
• 32" Monitor on Aft Wardrobe
• 24" Monitor on Forward Cabin Bulkhead
• 23" Width Seats (in lieu of 21" width)

Cabin Entertainment

• Multiple LCD Monitors w/ Flight Information
• A Cabin Management System (CMS) with an In-Flight Entertainment (IFE) System that includes worldwide maps, audio cabin briefing and display from external cameras as well as access to a library of locally stored films and music

Cabin Communications & Amenities

• JetWave Ka-Band High Speed Internet
• Iridium SATCOM
• USB Charging Ports

Exterior

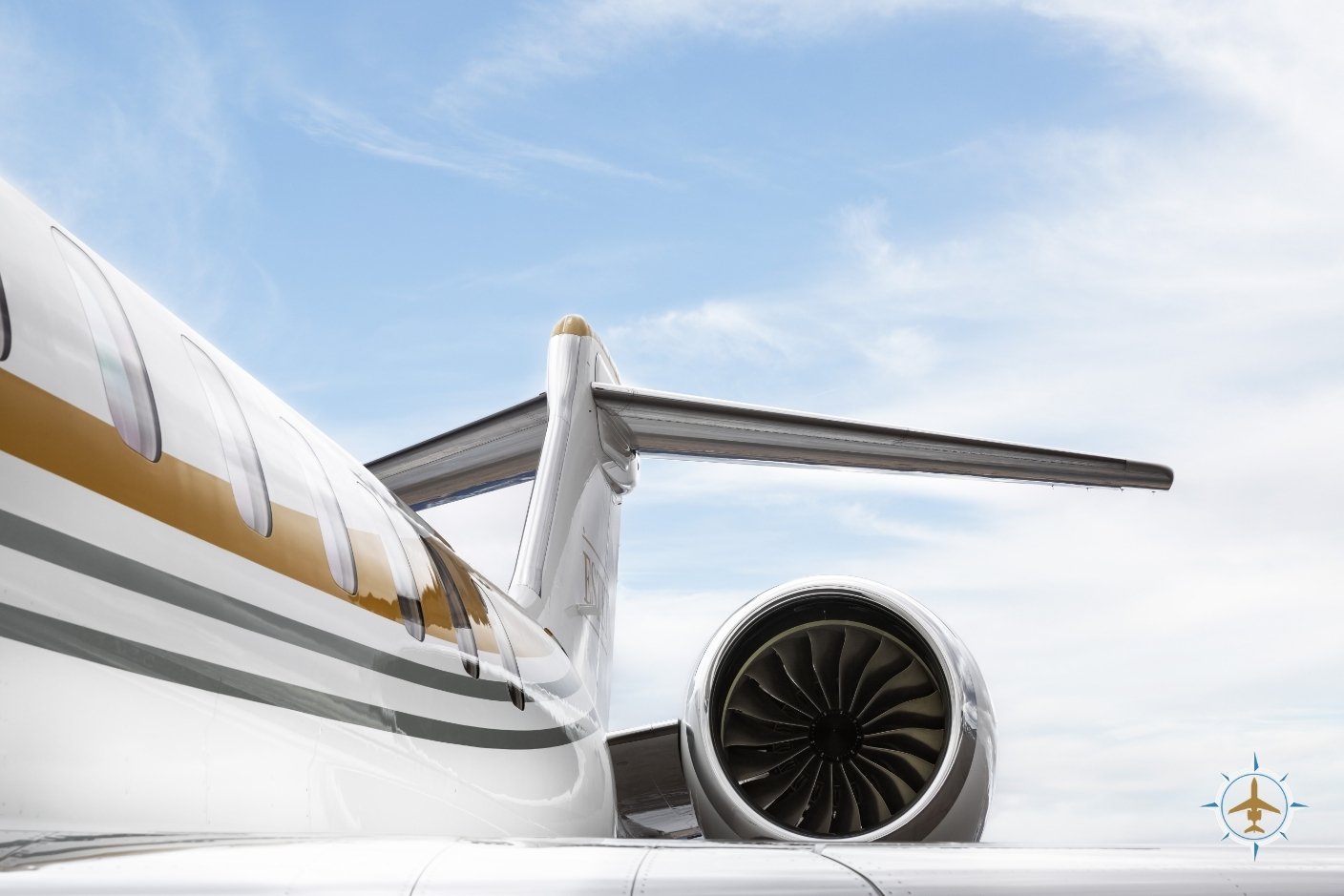

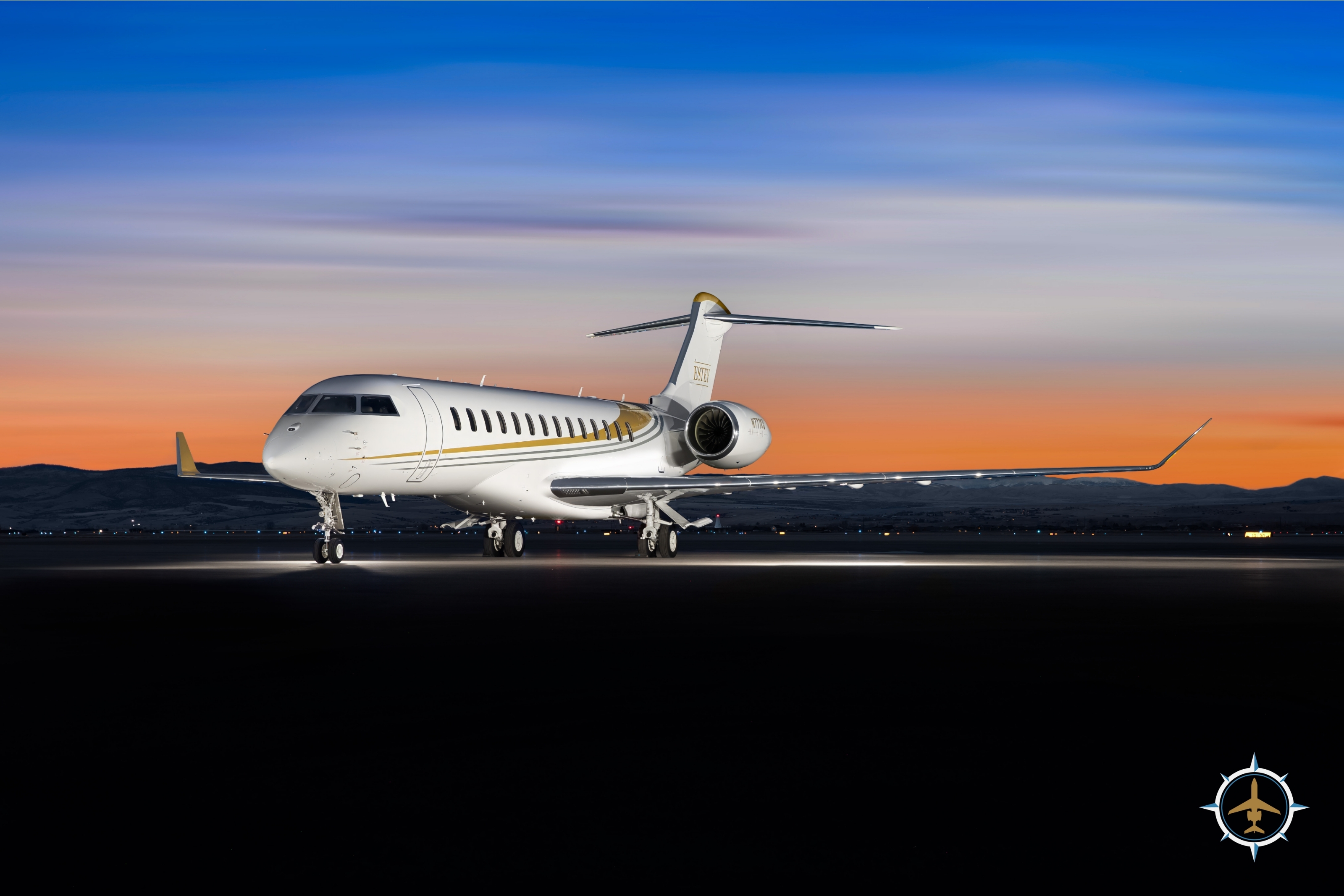

• Overall Matterhorn White w/ Gold and Silver Accent Stripes

‍

Maintenance Programs & Inspections Status

• Operated & Maintained per FAR §91
• Date of Original Delivery: 2021
• Certification Date: November 28, 2020
• Maintenance tracked by CAMP
• Engines Enrolled on GE OnPoint
• Airframe Enrolled on SmartParts
